Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Read and comply with GENERAL INFORMATION .
Remove PARTITION WALL, UNITS COMPARTMENT .

Pull off partition wall seal upper part (1) in direction of arrow.

Remove non-return valve (2) from brake servo.

Installation note:

Check gasket for non-return valve and replace if necessary.

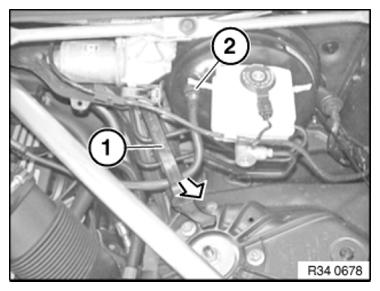

Fig 1: Pulling Off Partition Wall Seal Upper Part

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip vacuum line (1) from line clip (2).

Unlock snap fastener (3) and detach vacuum line.

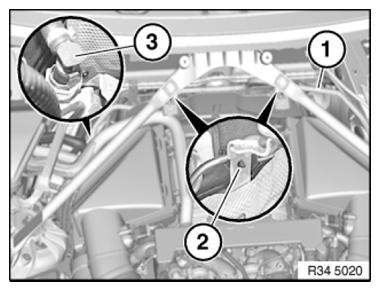

Fig 2: Identifying Vacuum Line, Line Clip And Snap Fastener

Courtesy of BMW OF NORTH AMERICA, INC.
