BUZZERS, RELAYS & TIMERS
| Component | Component Location |
|---|---|
| ABS Pump Motor Relay | In front power distribution box. See Figure. |
| ABS Relay | In front power distribution box. See Figure. |
| Air Conditioning Relay, Motronic (M Roadster) | In front power distribution box. |
| Blower Relay | In front power distribution box. See Figure. |
| Compressor Control Relay | In front power distribution box. See Figure. |
| Convertible Top Relay I (Close) | On left side of luggage compartment. |
| Convertible Top Relay II (Open) | On left side of luggage compartment. |
| Driver's Seat Length Adjust Cut Off Relay | Under left front seat. |
| Driver's Seat Tilt Adjust Cut Off Relay | Under left front seat. |

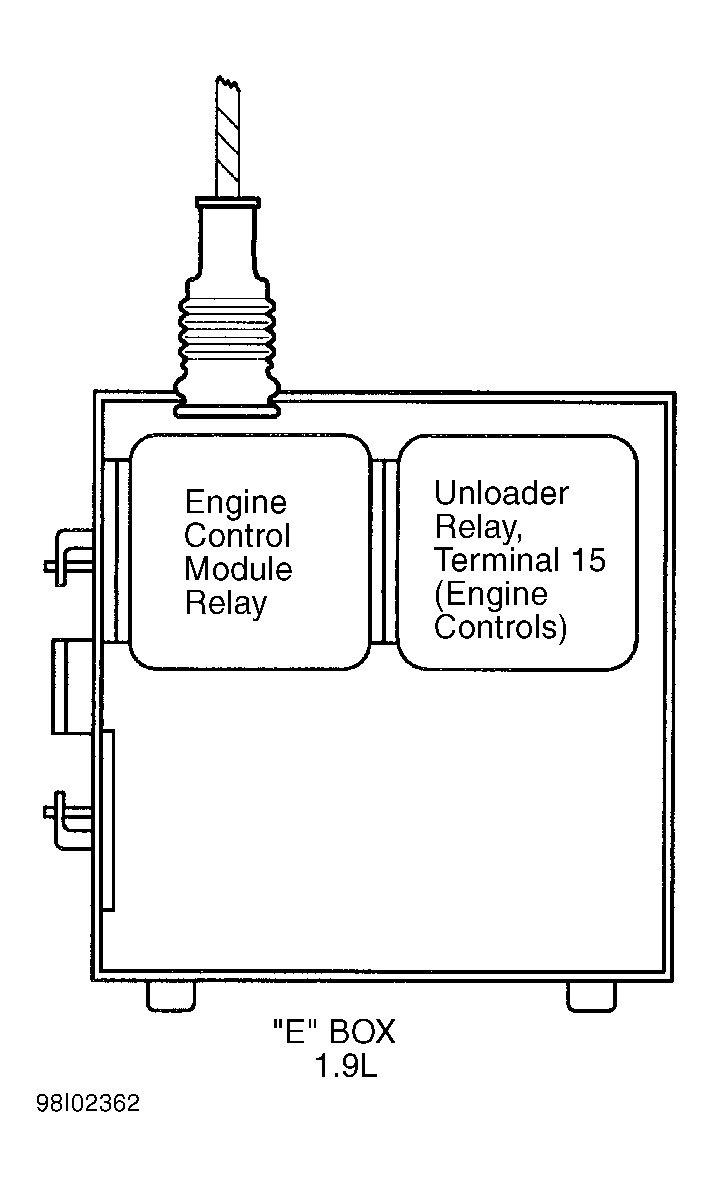

| Engine Control Module Relay (1.9L) | In E-box, on rear right side of engine compartment. See Figure. |

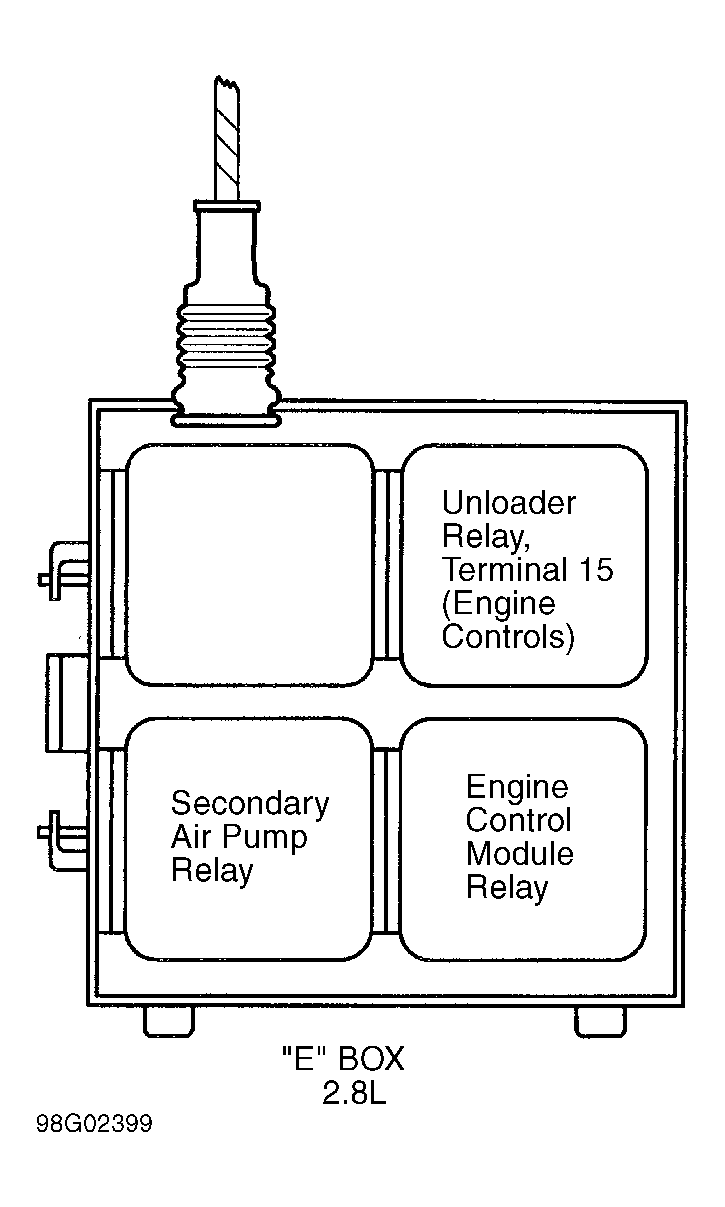

| Engine Control Module Relay (2.8L) | In E-box, on rear right side of engine compartment. See Figure. |
| Front Foglight Relay | In front power distribution box. See Figure. |
| Fuel Pump Relay | On relay panel, under left side of dash. See Figure. |
| Hazard Flasher Relay | In front power distribution box. See Figure. |
| High Beam Light Relay | On relay panel, under left side of dash. See Figure. |
| High Speed Relay | In front power distribution box. See Figure. |
| Horn Relay | In front power distribution box. See Figure. |
| Low Beam Light Relay | In front power distribution box. See Figure. |
| Normal Speed Relay | In front power distribution box. See Figure. |
| Passenger's Seat Length Adjust Cut Off Relay | Under right front seat. |
| Passenger's Seat Tilt Adjust Cut Off Relay | Under right front seat. |
| Secondary Air Pump Relay (1.9L) | In front power distribution box. See Figure. |
| Secondary Air Pump Relay (2.8L) | In E-box, on rear right side of engine compartment. See Figure. |
| Unloader Relay, Terminal 15 (Heated Seats) | In front power distribution box. See Figure. |
| Unloader Relay, Terminal 15 (Engine Controls) (1.9L) | In E-box, on rear right side of engine compartment. See Figure. |
| Unloader Relay, Terminal 15 (Engine Controls) (2.8L) | In E-box, on rear right side of engine compartment. See Figure. |
