61 61 270 Removing and installing mounting bracket for windshield wiper system complete with motor (Z3 Roadster, Z3 Coupe, M Roadster, M Coupe)
WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove grill for air intake/heating. Refer to 51 13 077 REMOVING AND INSTALLING/REPLACING GRILL FOR AIR INTAKE/HEATER (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .
Unfasten screws.

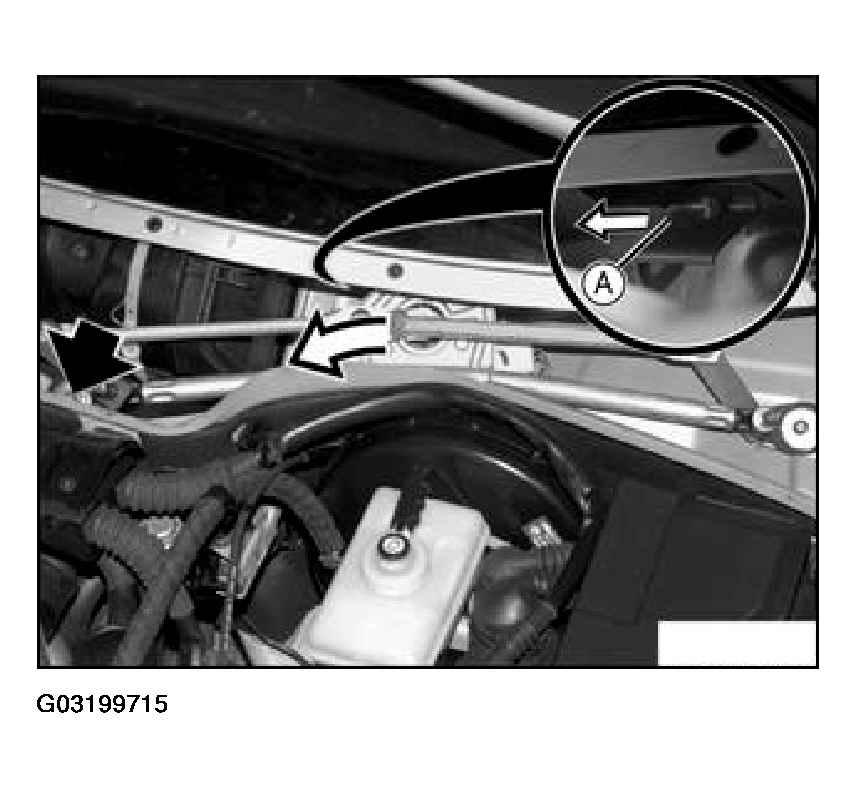

Feed mounting bracket for wiper system sideways out of upper guide (A) and pull out.

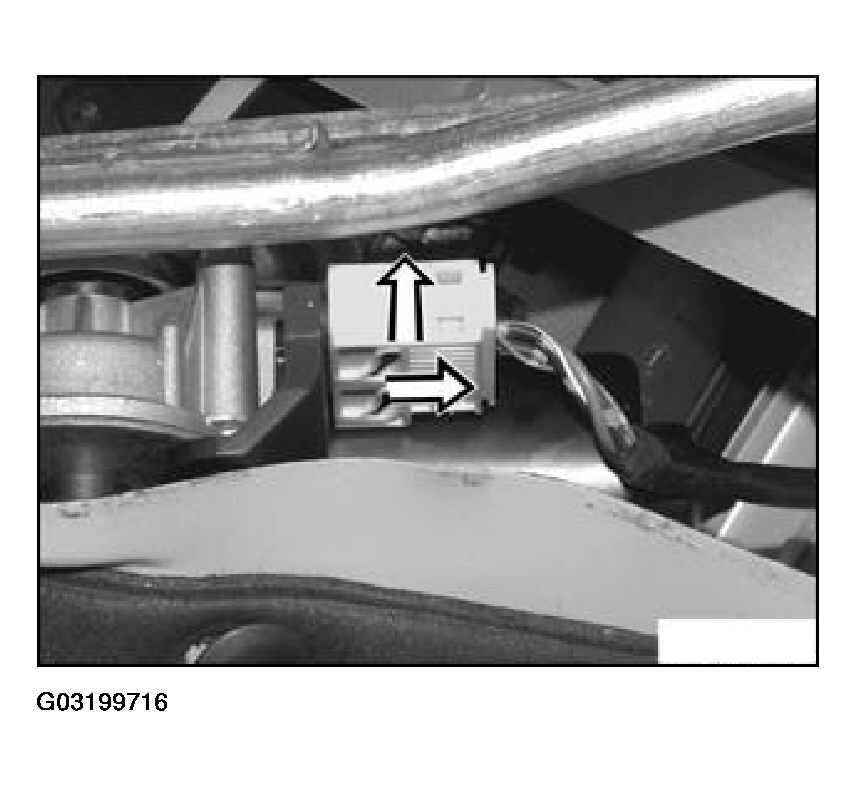

Unlock plug connection, disconnect and remove mounting bracket for wiper system completely.
