54 12 270 Removing and installing/replacing adjuster for glass slide/tilt sunroof lid

Remove glass sunroof lid. Refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDE/TILT SUNROOF LID  .

Close glass sunroof lid (zero position). Unhook lever (2) from adjuster (1).

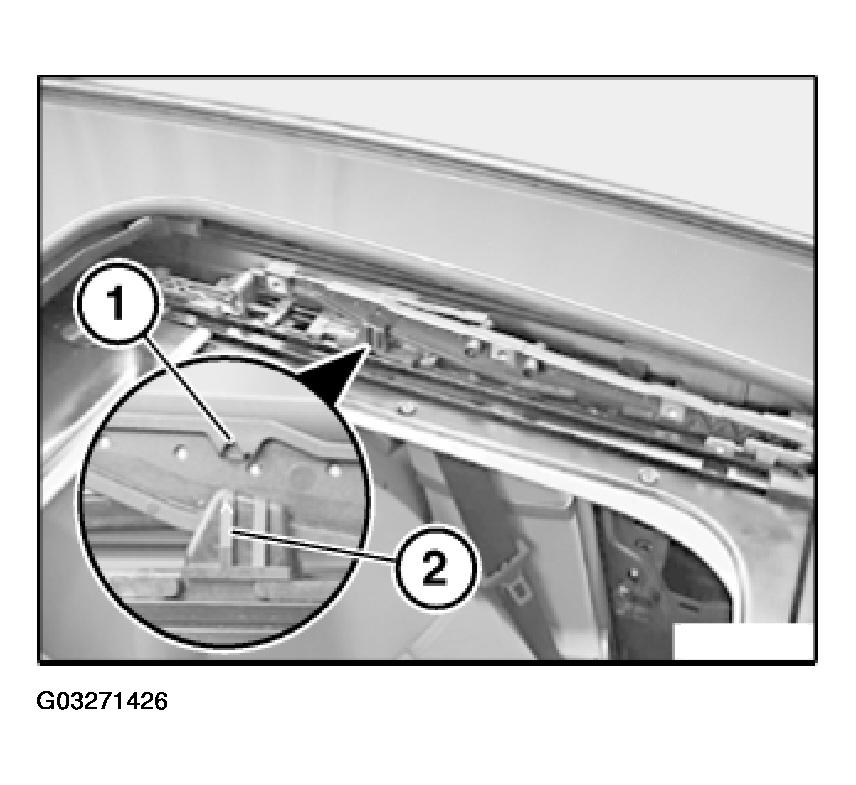

Fig 1: Removing Lever From Lid Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locking catches (1) of lever (2) must not be damaged.

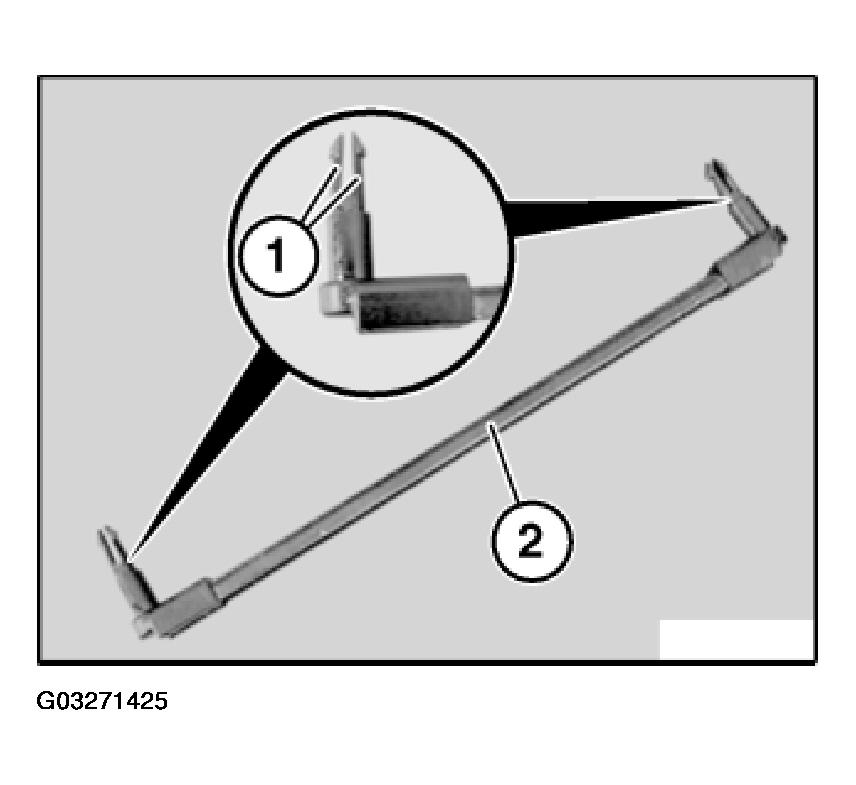

Fig 2: Identifying Locking Catches Of Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When glass sunroof is in zero position, marking (1) on adjuster must be positioned over marking (2) on slider.

If necessary, move adjuster or slider.

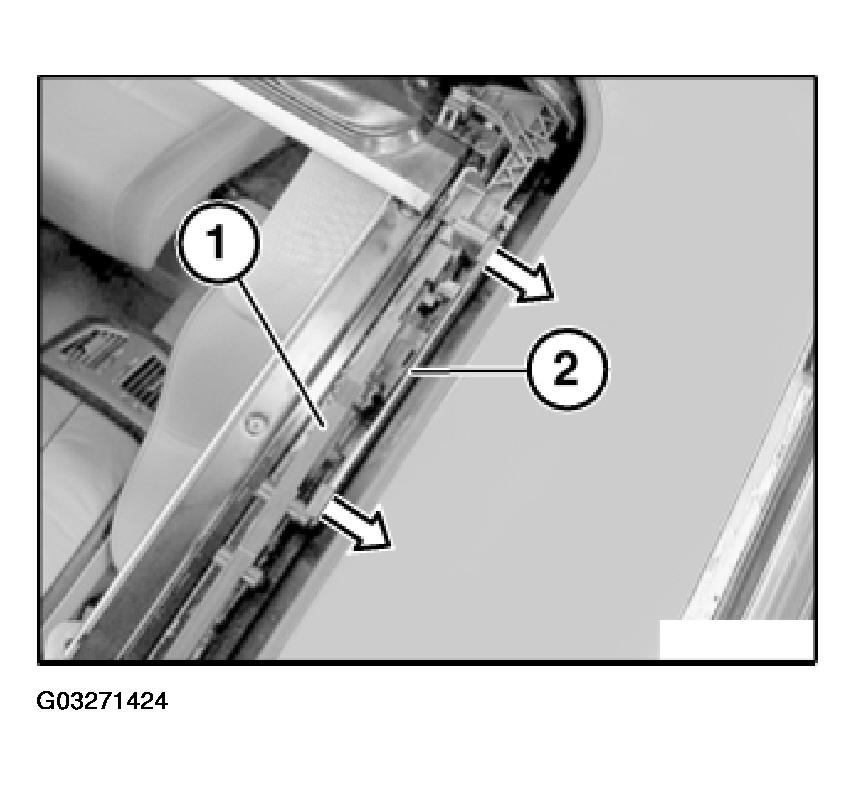

Fig 3: View Of Marking On Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Move glass sunroof lid into "lift position".

Pull adjuster (3) and carriage (1) together towards rear until adjuster (3) can be unhooked from slider (2).

Grip slider (2) in so doing.

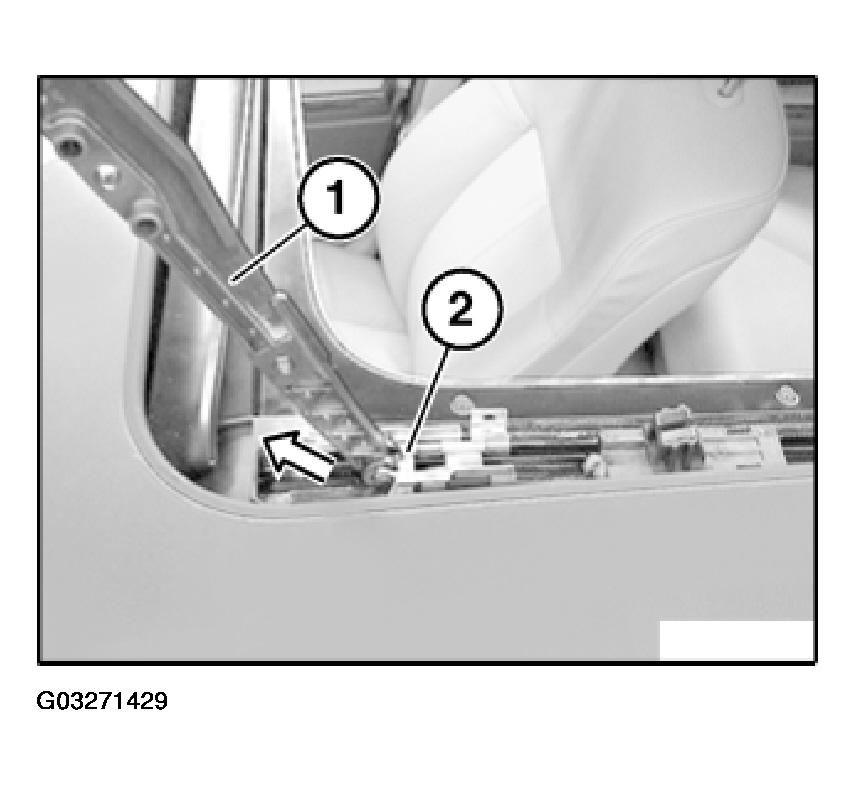

Fig 4: Locating Adjuster And Carrier For Glass Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Twist adjuster (1) upwards.

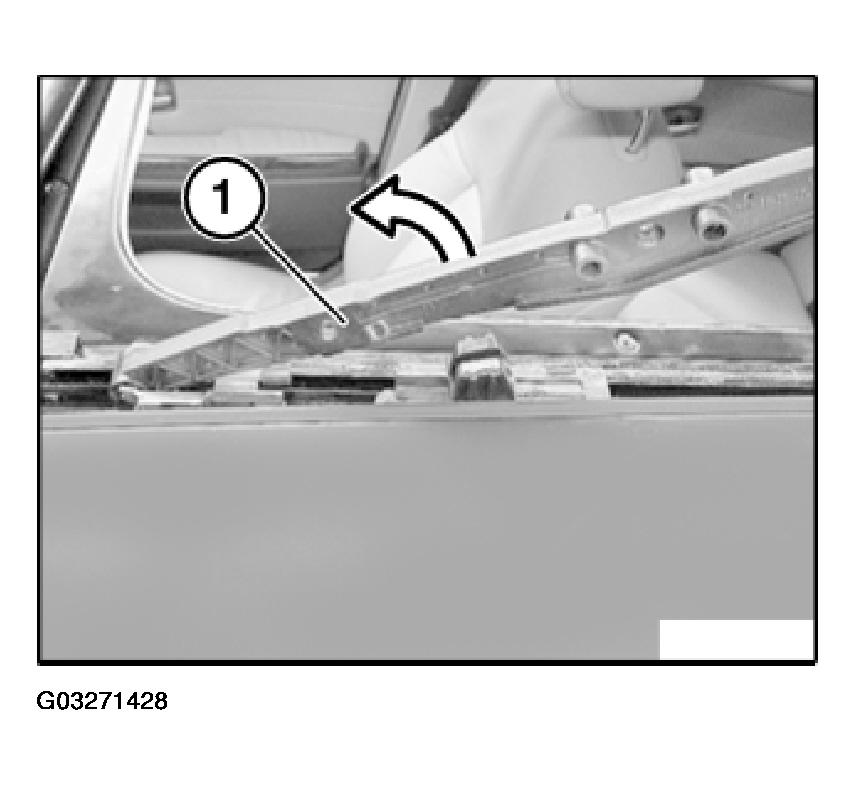

Fig 5: Aligning Glass Sunroof Lid Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook adjuster (1) from carriage (2).

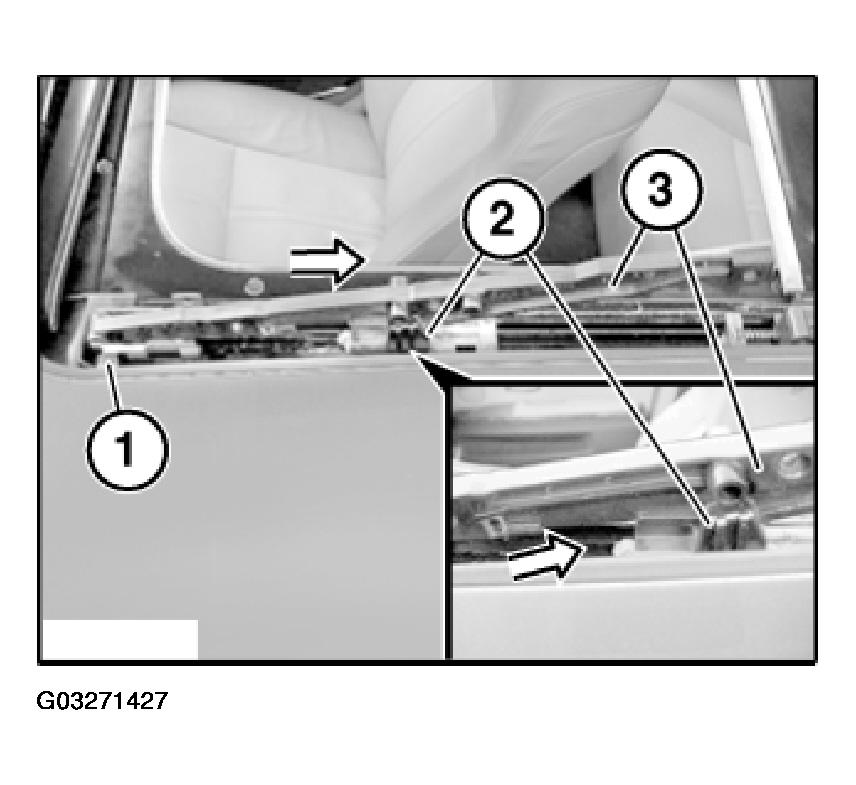

Fig 6: View Of Adjuster In Carriage
