54 12 015 Replacing left or right gaiter for glass slide/tilt sunroof

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Move glass sunroof lid into "lift position".

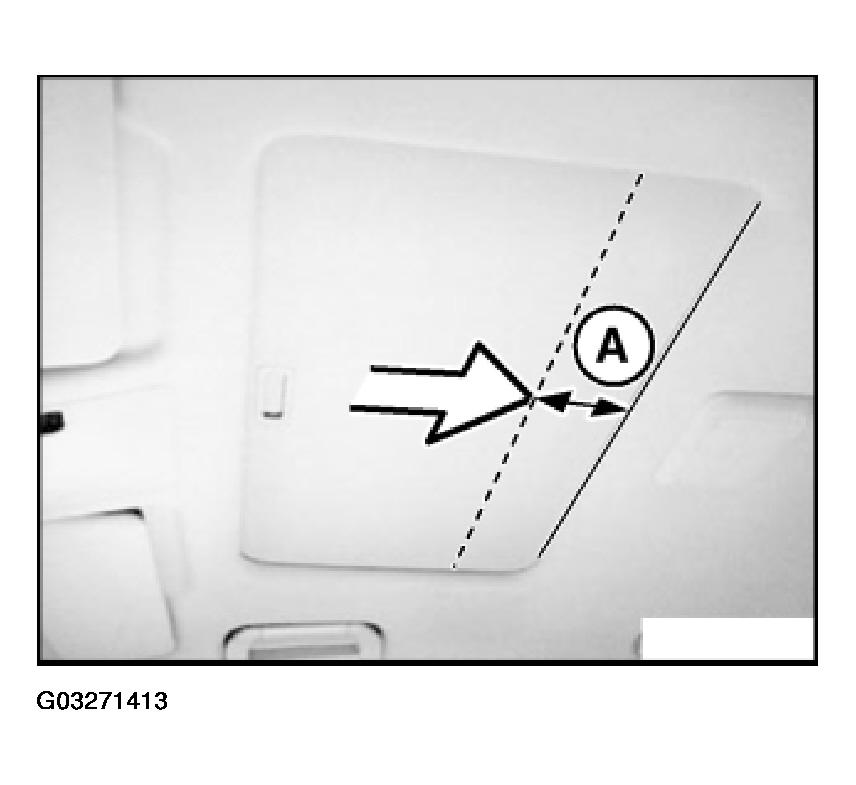

Slide roofliner (floating) slowly towards rear until stop can be felt.

E60, E61: A = 0 mm.

Fig 1: Aligning Glass Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

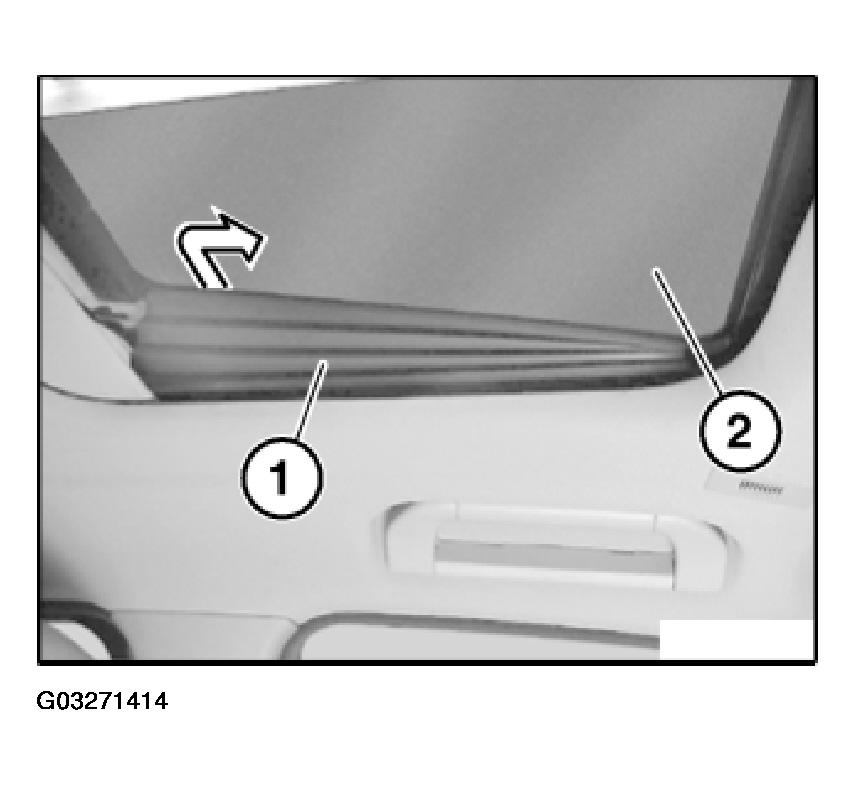

Pull out gaiter (1) at rear starting from glass sunroof lid (2).

Fig 2: View Of Gaiter In Glass Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

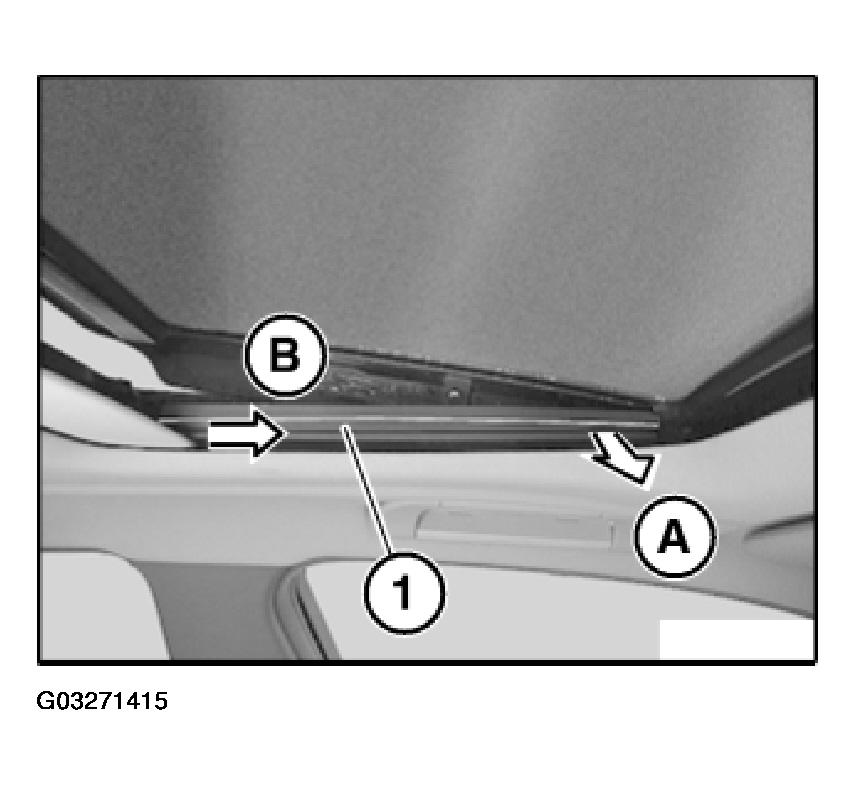

Remove gaiter (1) as follows:

Unclip at front.
Slide forwards and remove.

Fig 3: Removing Gaiter
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

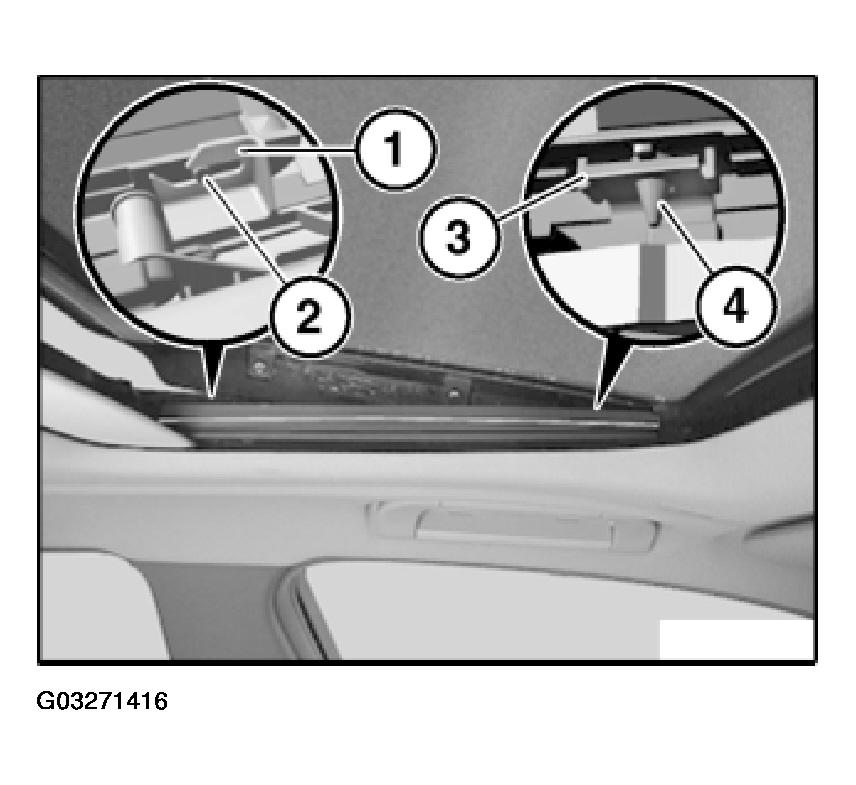

Retainer (4) and guide pin (2) must not be damaged.

Slide guide pin (2) into holder (1). Retainer (4) must engage in holder (3).
