65 13 052 Removing and installing/replacing cover on speaker system (High End sound system in dashboard trim panel)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

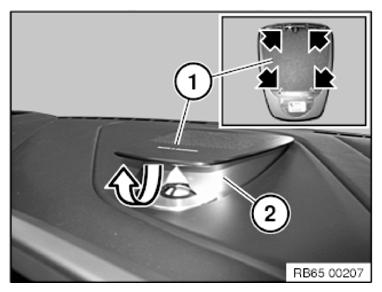

Picture shows F12 for example purposes.
Move out speaker system (2) by switching on radio.
Cover (1) is clipped on speaker system at marked points.
Carefully unclip cover (1) upwards.
Installation note:
Speaker system (2) must be moved out to allow cover (1) to lock correctly.
