41 14 531 Replacing Engine Support/Front Left Side Frame Connection (Front Left Wheel Arch Removed)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

To remove engine support side frame connection

The following new body parts are required :

(1) Connection, wheel arch/entrance

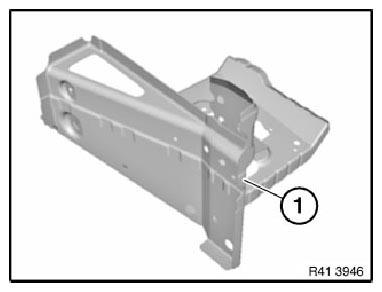

Fig 1: Identifying Wheel Arch/Entrance Connection
Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

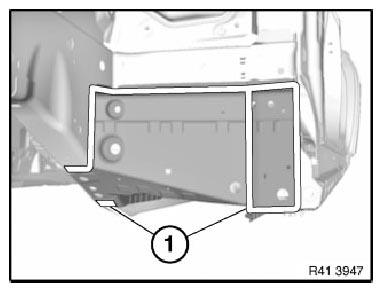

Fig 2: Identifying Wheel Arch/Entrance Welded Connections Areas

G08525963

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open welded connections in areas (1).

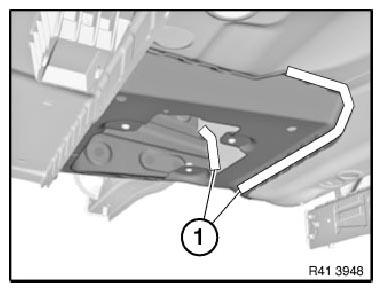

Fig 3: Identifying Welded Connections Areas

G08525964

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open welded connections in areas (1).

Remove wheel arch/entrance connection.

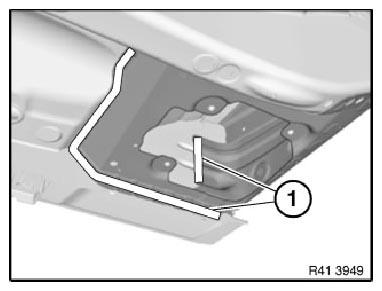

Fig 4: Identifying Wheel Arch/Entrance Welded Connections Areas

G08525965

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Open welded connections in area (1).

Remove metal section (2).

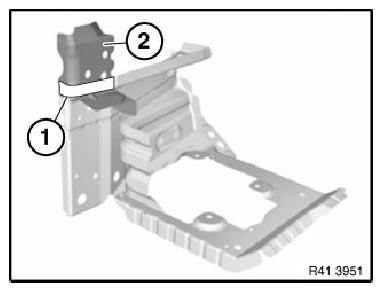

Fig 5: Identifying Welded Connections Area And Metal Section

G08525966

Courtesy of BMW OF NORTH AMERICA, INC.

To install engine support side frame connection

Install and weld new parts.
