41 14 505 Replacing Rear Left Outer Wheel Arch Section (Rear Side Panel Removed)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.
Use only approved SPOT-WELDING APPARATUS for repairs.
The following new body parts are required :

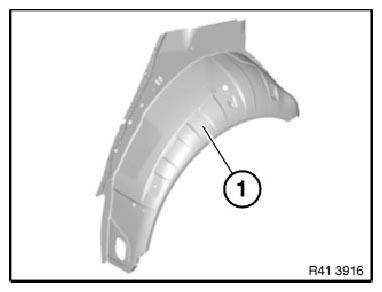

- (1) Outer wheel arch section, rear
- (4) Shaped part, entrance, outer (not shown)
Removal of outer wheel arch section

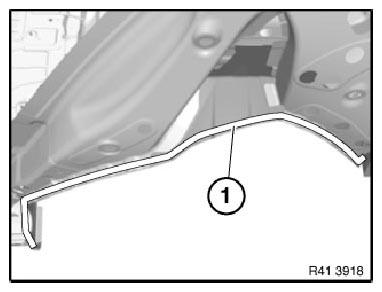

Cut wheel arch along line (1).
Cut wheel arch along line (1).

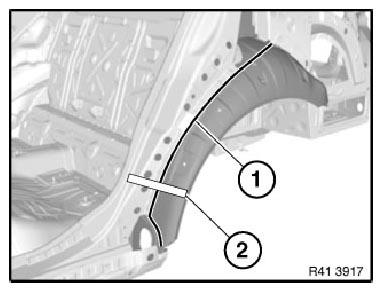

Remove section for outer wheel arch section.
Installation note:

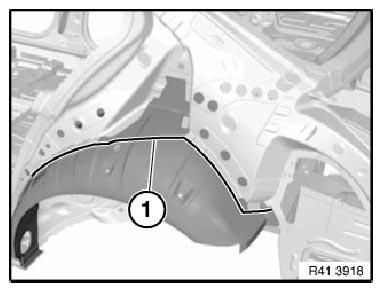

Fit new part from below and weld in area (1) to overlap.
Preparation of new part
Mark new part in accordance with severance cut on vehicle + 20 mm extra material and cut.
Adjust new part in conjunction with side wall to fit.
Installation of outer wheel arch section
Install new part and weld.
