41 14 504 Replacing Rear Right Outer Wheel Arch Section (Rear Side Panel Removed)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved SPOT-WELDING APPARATUS for repairs.

The following new body parts are required :

(1) Outer wheel arch section, rear
(4) Shaped part, entrance, outer (not shown)

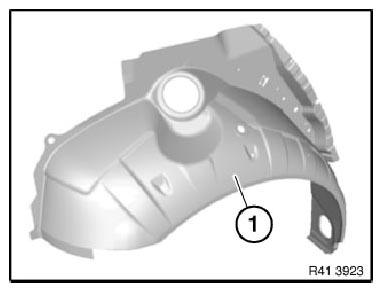

Fig 1: Identifying Rear Outer Wheel Arch Section
Courtesy of BMW OF NORTH AMERICA, INC.

Removal of outer wheel arch section

Cut wheel arch along line (1).

REPLACE CAVITY SEALING (2) .

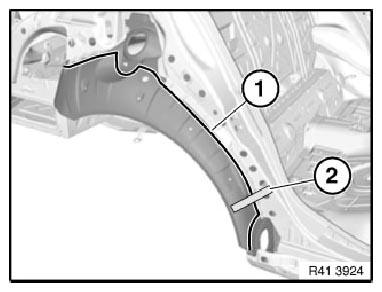

Fig 2: Identifying Cavity Sealing And Wheel Arch Cutting Line

Courtesy of BMW OF NORTH AMERICA, INC.

Cut wheel arch along line (1).

OPEN spot-welded adhesive joints in area (2).

IMPORTANT: Severance cut in area (3) not permitted!

Remove section for outer wheel arch section.

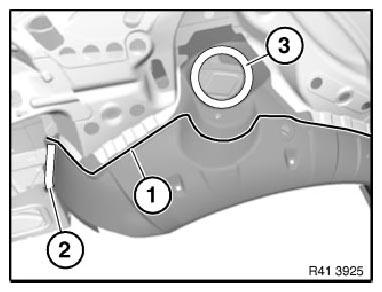

Fig 3: Identifying Wheel Arch Cutting Line, Severance Cut And Spot-Welded Adhesive Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part

Mark new part in accordance with severance cut on vehicle + 20 mm extra material and cut.

Installation of outer wheel arch section

Fit new part from below and adjust to fit in conjunction with side wall.

Weld new part.
