41 00... Stamping Vehicle Identification Number (Needle Stamping Unit)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Read and comply with GENERAL INFORMATION .

The needle stamping system 360 - VRM - BMW is required to stamp the vehicle identification number.

Order number: 81 43 2 155 736

Fig 1: Identifying Needle Stamping System 360 Tool Set

Courtesy of BMW OF NORTH AMERICA, INC.

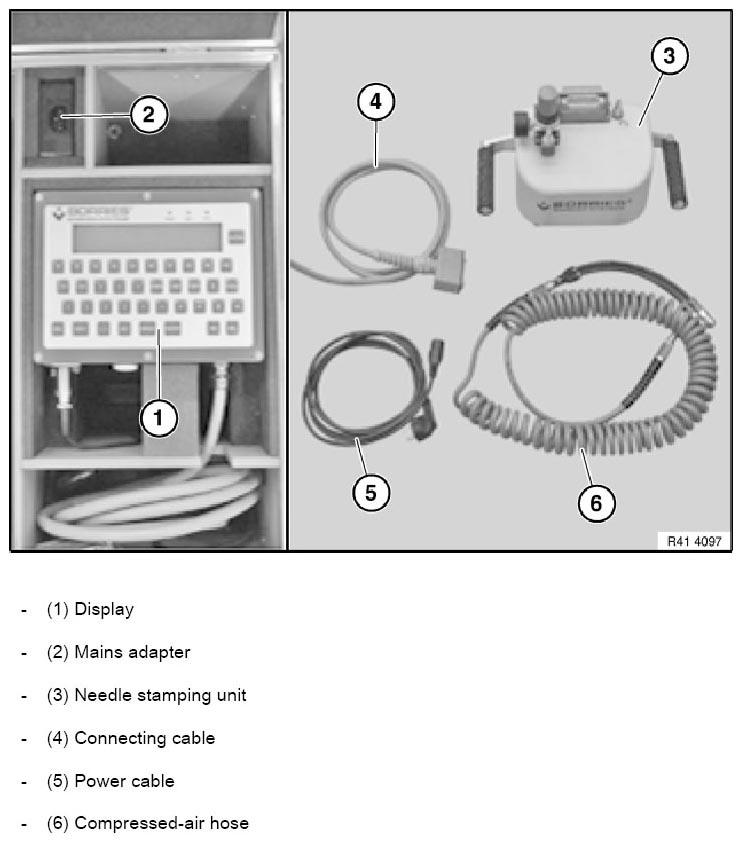

The needle stamping system 360 tool set comprises:

(1) Display
(2) Mains adapter
(3) Needle stamping unit
(4) Connecting cable
(5) Power cable
(6) Compressed-air hose

NOTE: A compressed-air connection is also required.

Operating pressure approx. 6 bar
Use only dry, oil-free air

Procedure for additional vehicle identification number

Cross through original vehicle identification number.

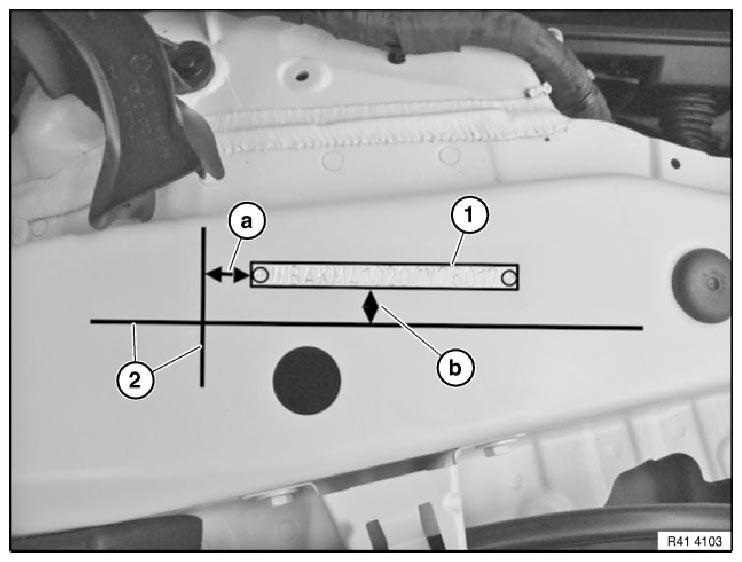

Fig 2: Identifying Original Vehicle Identification Number And Position Line Dimension
Courtesy of BMW OF NORTH AMERICA, INC.

Remove ENGINE COMPARTMENT LID SEAL LOCATOR

= Original vehicle identification number (line 1).

Mark position lines (2) in accordance with specified dimensions/measurements.

Dimension a = 12 mm

Dimension b = 10 mm

Display input:

Select Layout 5 with arrow button.
Enter vehicle identification number with F10.
Press "ENTER" button.

NOTE: With Layout 5 the vehicle identification number (line 1) is crossed through.

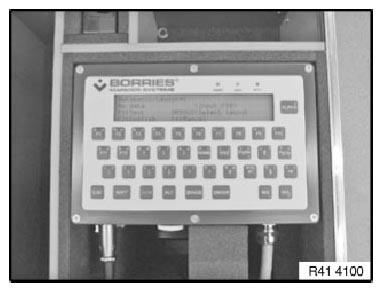

Fig 3: Display - Vehicle Identification Number

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Perform stamping operation with position lines in advance on a test sheet.

Fig 4: Identifying Suction Feet Of Needle Stamping Unit Moving Position

Courtesy of BMW OF NORTH AMERICA, INC.

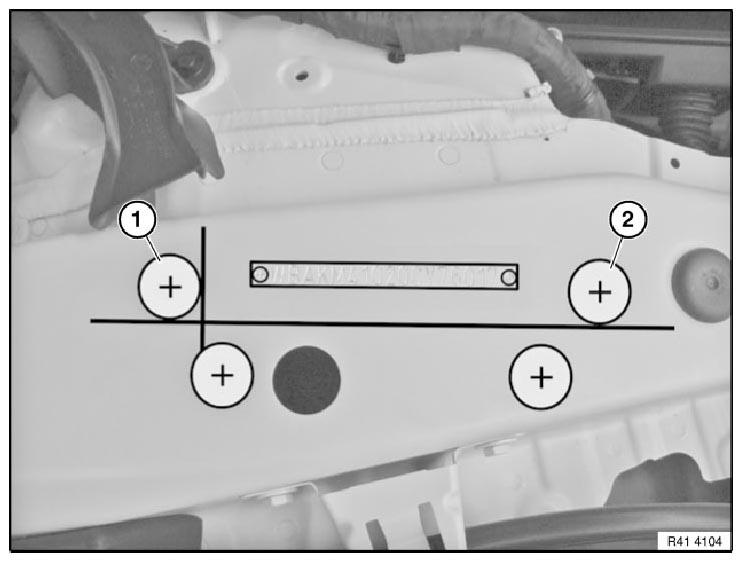

Move suction feet of needle stamping unit to positions (1) and (2) shown.

NOTE: The contact surface for the suction cups of the needle imprint device must be dry and free of dust and grease!

Make sure the unit is resting securely in position. If necessary, adjust the height and position of the suction feet.

Press pushbutton (1) for vacuum pressure.

Then start stamping operation with pushbutton (2).

IMPORTANT: After completing the stamping operation, do not alter the position of the unit.

Do not switch off vacuum pressure.

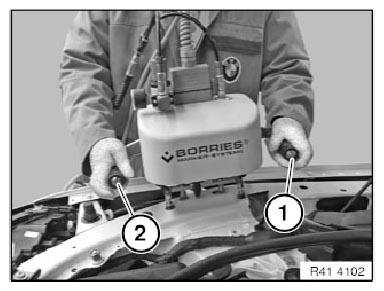

Fig 5: Performing Stamping Operation Using Pushbuttons

Courtesy of BMW OF NORTH AMERICA, INC.

Stamping second vehicle identification number

Display input:

Select Layout 2 with arrow button.
Press "ENTER" button.

NOTE: With Layout 2 the already entered vehicle identification number is stamped in line 2.

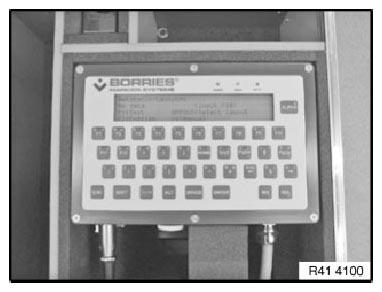

Fig 6: Display - Vehicle Identification Number

Courtesy of BMW OF NORTH AMERICA, INC.

Start stamping operation with pushbutton (2).

After the stamping operation, if necessary adapt ENGINE COMPARTMENT LID SEAL LOCATOR of second vehicle identification number.

Fig 7: Performing Stamping Operation Using Pushbuttons

Courtesy of BMW OF NORTH AMERICA, INC.

Following layout functions are available:

Layout selection	Vehicle identification number
Layout 1	In line 1
Layout 2	In line 2
Layout 3	Turned through 180° in line 1
Layout 4	Turned through 180° in line 2
Layout 5	Cross through in line 1
Layout 6	Cross through in line 2
