41 11 542 Cover For Side Member At Rear (Rear Side Panel Removed)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Use only approved SPOT-WELDING APPARATUS for repairs.

The following new bodywork parts are required:

Cover, side member, rear (component is included on new side panel part)

Removal

Open weld joints in area (1).

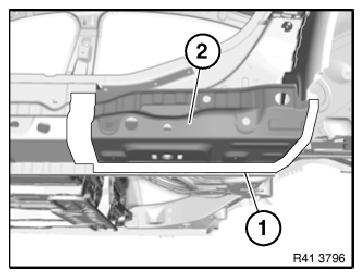

Fig 1: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open weld joint (1).

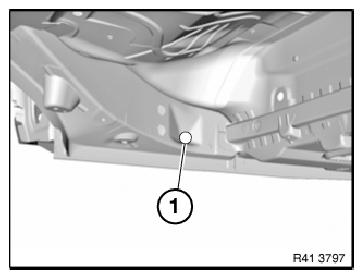

Fig 2: Identifying Welded Joint Area

Courtesy of BMW OF NORTH AMERICA, INC.

View from inside:

Open weld joint (1).

Remove side member cover.

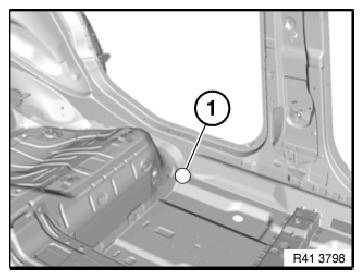

Fig 3: Identifying Side Member Cover Weld Joint

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part

Detach side wall.

Open welded connections in area (1) and remove side member cover (2).

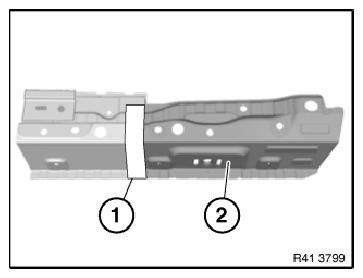

Fig 4: Identifying Side Member Cover And Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Install new part and weld.

NOTE: Apply repair welding spots in area of sill bottom edge to existing welding spots on new component/car. This is necessary because the adhesive between the spot flanges acts as an insulator.
