41 11 300 Replacing Left And Right Entrance With Door Post (Partial Replacement, B-Pillar): Notes
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Observe procedures for REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
Spot-weld bonding is used on this vehicle.
Observe specific PROCEDURE .
Use only an approved SPOT-WELDING APPARATUS for repairs!
Place vehicle on straightening bench.
The following new body parts are required :

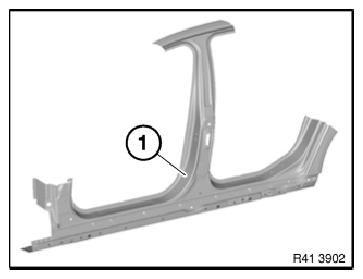

- (1) B-pillar with entrance
- (2) ADHESIVE K1 (not shown)
- Blind rivets N1 (3 pieces)
