41 11 150 Cover For Frame Side Member (Part Replacement Between A And B Pillar)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedures for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

The following new body parts are required :

(1) B-pillar with entrance

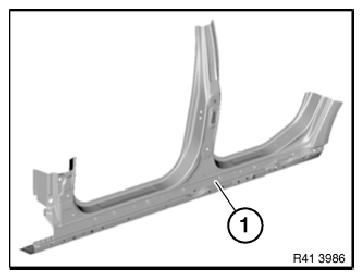

Fig 1: Identifying B-Pillar (With Entrance)

Courtesy of BMW OF NORTH AMERICA, INC.

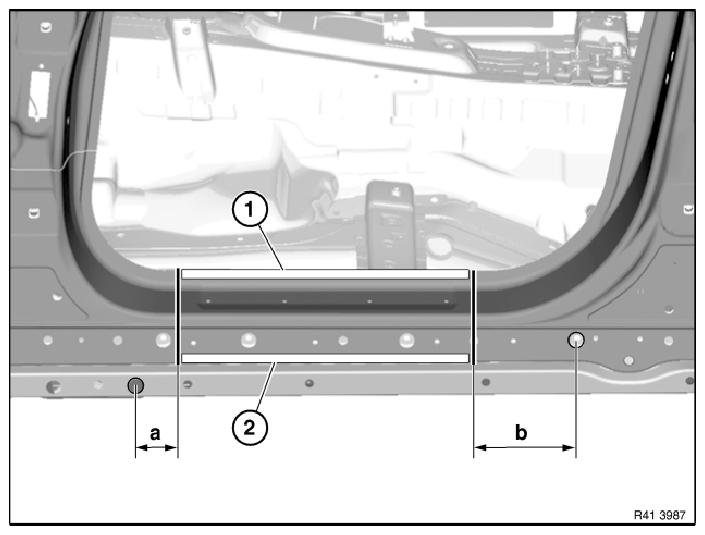

Fig 2: Identifying Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only for following severance cuts.

Dimension a = approx. 70 mm behind 25 mm dia. hole.

Dimension b = approx. 180 mm in front of 25 mm hole.

Open welded connections in areas (1) and (2).

Installation note:

Mark new part in accordance with severance cuts on vehicle and cut.

Separate welded connections on new part to match vehicle.

Weld in REINFORCEMENT PLATES at all severance cuts.

Apply repair welding spots in area (1) to existing welding spots on vehicle. This is necessary because the adhesive between the spot flanges acts as an insulator.
