41 11 095 Replacing Left Engine Support In Front Of Wheel Arch
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Observe procedures for REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
Use only APPROVED SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.
Necessary preliminary work:
The following new body parts are required :

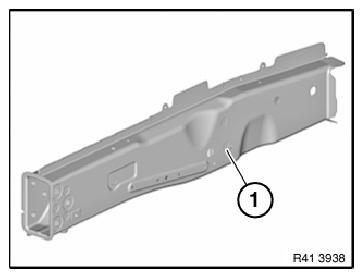

- (1) Engine support, front

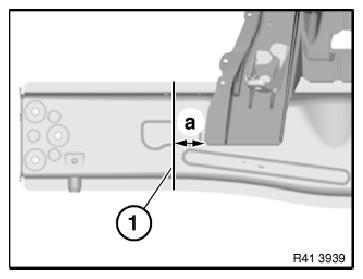

Mark severance cut in accordance with Dimension a and cut.
Dimension a=40 mm before wheel arch edge.
Remove section of engine support.
Installation note:
Mark severance cut on new part in accordance with vehicle and cut.
Adjust new part to fit with alignment bracket or universal mount.
Weld in REINFORCEMENT PLATE at severance cut.
