41 11 015 Replacing Left Engine Support With Wheel Arch: Notes
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Observe procedures for REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
Steel-aluminium composite construction is used on the vehicle. See BONDING ALUMINIUM ON STEEL and OPENING RIVETED JOINTS .
Spot-weld bonding is used on this vehicle.
Observe specific PROCEDURE .
Use only approved SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.

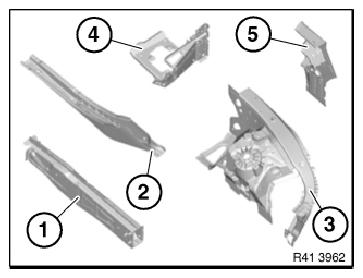

The following new body parts are required:
- (1) Engine support
- (2) Engine support, rear
- (3) Wheel arch, front
- (4) Connection, wheel arch/entrance
- (5) Connection, side frame, rear
- (6) Shaped parts, carrier support, wheel arch, front (not shown)
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Blind rivets N2 | 25 |
| Cleaning agent R1 | 1 |
| Cavity sealing wax remover | 1 |
| Sealant D1 |
