New Part Preparation

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

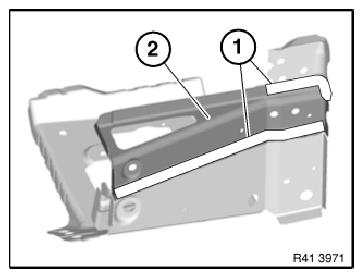

Open welded connections in areas (1). Remove metal section (2).

Fig 1: Identifying Welded Connections Areas And Metal Section

G08510863

Courtesy of BMW OF NORTH AMERICA, INC.

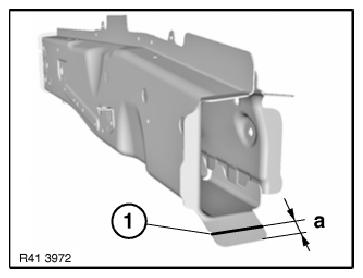

Mark severance cut (1) in accordance with dimension a and cut.

Dimension a = 20 mm

NOTE: New part is welded to the body in the area of the severance cut (1).

Fig 2: Identifying Severance Cutting Dimension

G08510864

Courtesy of BMW OF NORTH AMERICA, INC.

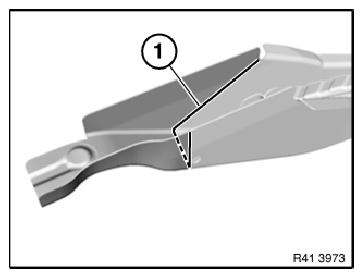

Mark rear engine support in accordance with severance cut on vehicle and cut (1).

Fig 3: Identifying Rear Engine Support Cutting Mark

G08510865

Courtesy of BMW OF NORTH AMERICA, INC.

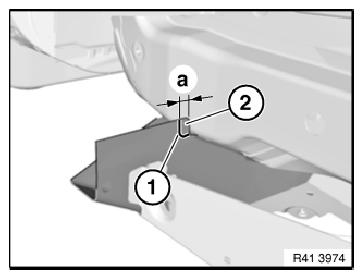

Mark severance cut (1) in accordance with dimension a and cut.

Dimension a = 15 mm

Remove metal section (2).

Fig 4: Identifying Metal Section And Severance Cut

G08510866

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare REINFORCEMENT PLATES at severance cuts.

IMPORTANT: To avoid contact corrosion, do not grind the new wheel arch part in the area of the BONDING SURFACES .

Grind bonding surfaces on body blank.

Adjust new parts to fit with alignment bracket or universal mount and secure.

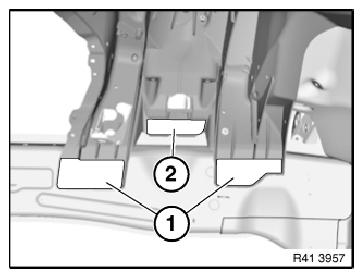

In areas (1) and (2) set 19 bore holes with a diameter of 6.8 mm for blind rivets N2.

Arrangement of blind rivets is analogous to the series.

Fig 5: Identifying Rivet Holes Drill Areas

G08510867

Courtesy of BMW OF NORTH AMERICA, INC.

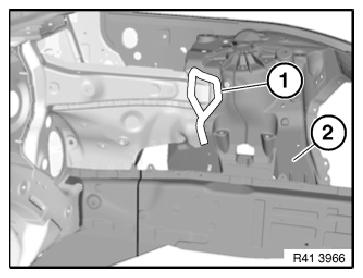

In area (1) transfer 6 bore holes Ø 6.8 mm for blind rivets N2 on new part.

Remove new parts and deburr bore holes.

Fig 6: Identifying Bonded Connections Area And Wheel Arch

G08510868

Courtesy of BMW OF NORTH AMERICA, INC.
