41 21 510 Replacing Front Left Door Post (Front Side Panel Removed)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedures for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle.

Observe specific PROCEDURE .

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

The following new body parts are required :

(1) A-pillar, outer
(2) Connection, side frame
(3) Shaped part, carrier support, wheel arch, front (not shown)
(4) Shaped part, carrier support, wheel arch (not shown)

Following CONSUMABLES are required:

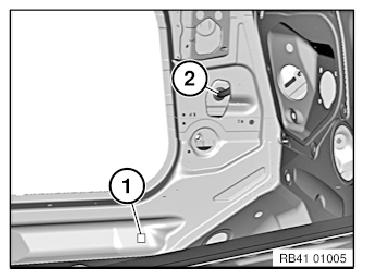

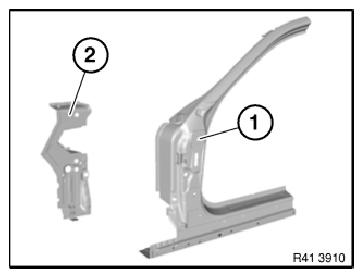

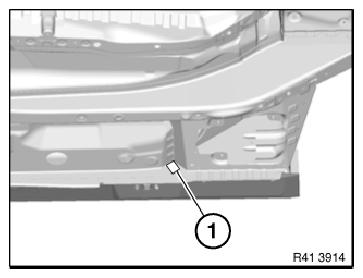

Fig 1: Identifying Side Frame Connection And Outer A-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Adhesive K1	1
Blind rivets N7	7
Blind rivets N3	2
Cleaning agent R1	1
Sealant D1
Cavity wax remover

Removal of front door post

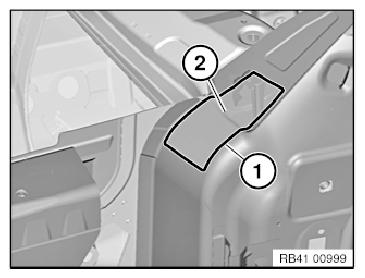

Roughly cut side frame connection along lines (1).

LOOSEN spot-welded adhesive joints in areas (2).

Open welded connections in areas (3).

Release side frame connection from cavity sealing (4) and remove.

Open remaining welded connections in areas (1).

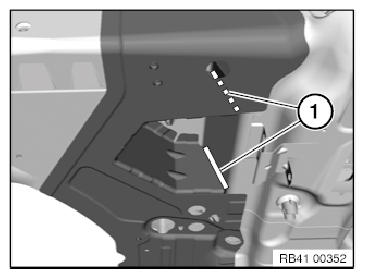

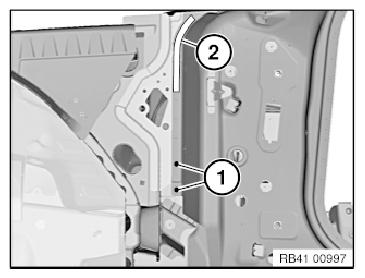

Fig 2: Identifying Cavity Sealing, Welded Connection And Spot-Welded Adhesive Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.

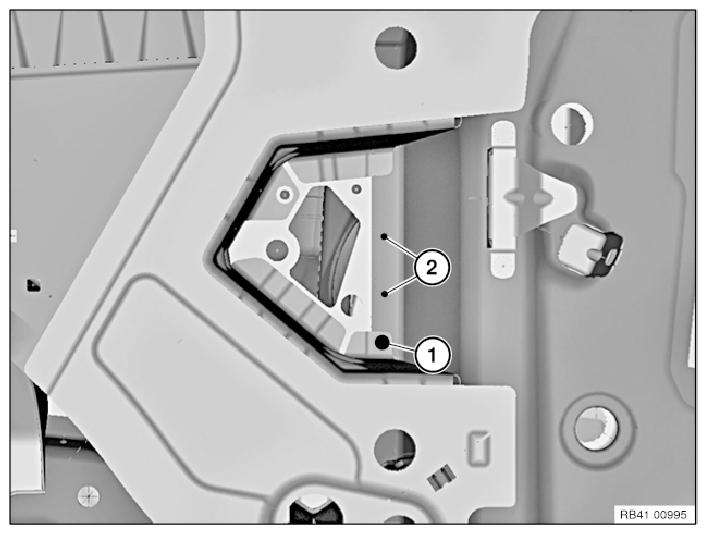

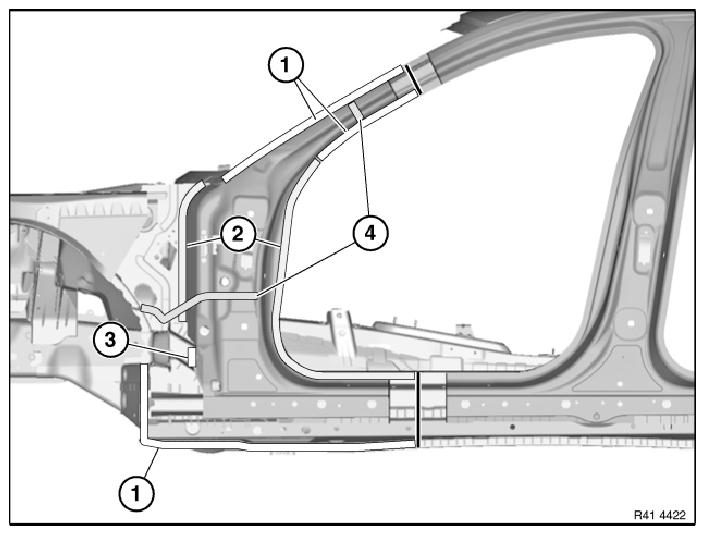

Fig 3: Identifying Welded Connections Areas, Metal Section And Sheet Sections

Courtesy of BMW OF NORTH AMERICA, INC.

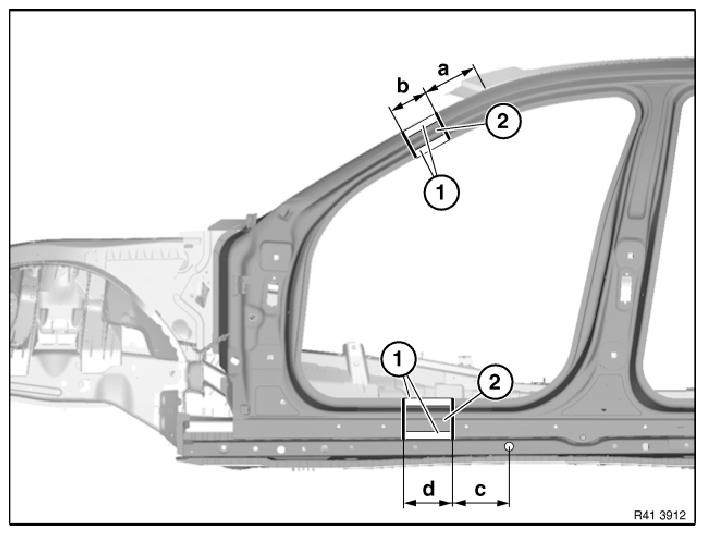

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only for following severance cuts.

Dimension a = 200 mm from roof edge.

Dimension b = 100 mm below severance cut a.

Dimension c = approx. 165 mm before center of hole dia. 15 mm.

Dimension d = 140 mm before severance cut c.

Open welded connections in areas (1).

Remove sheet sections (2).

NOTE: Cut-out metal sections (2) are required again for sealing.

IMPORTANT: For following severance cut, do not damage slide/tilt sunroof water drain hose.
Cut outer panel only.

Mark severance cut (1) in accordance with specified dimension and cut.

Dimension a = approx. 250 mm from roof edge.

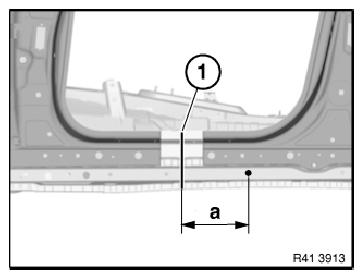

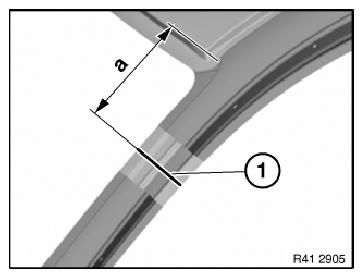

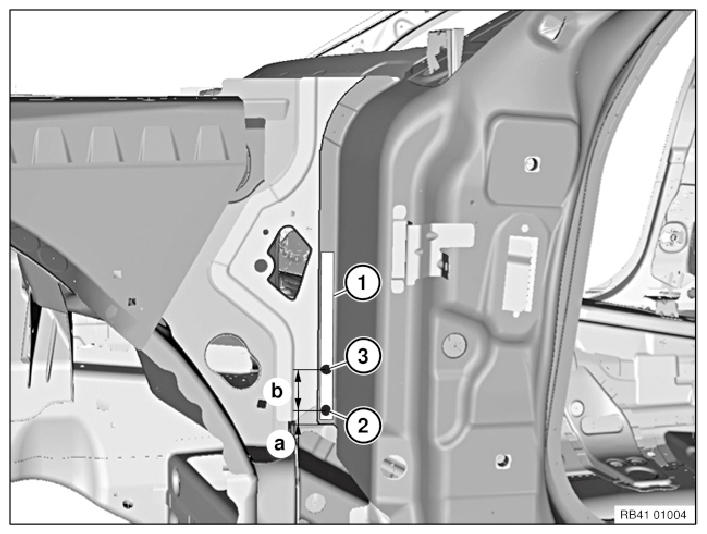

Fig 4: Identifying Roof Edge Cutting Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with specified dimension and cut.

IMPORTANT: Cut outer panel only.

Measurement a = approx. 235 mm before centerpoint of 20 mm dia. hole.

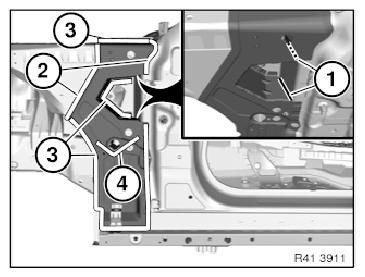

Fig 5: Identifying Outer Panel Cutting Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

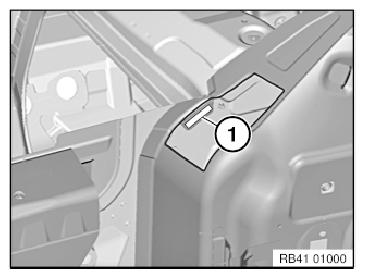

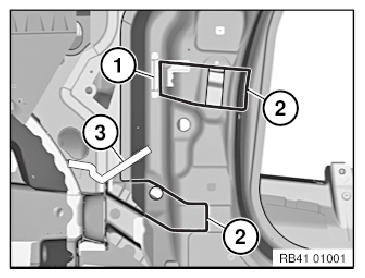

Fig 6: Identifying Cavity Sealing, Bonded And Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Open spot-weld bonded joints in areas (2).

Open bonded connection in area (3).

Remove cavity sealing (4).

Installation note:

Replace glued joint in area (3) with MAG weld seam.

View from below.

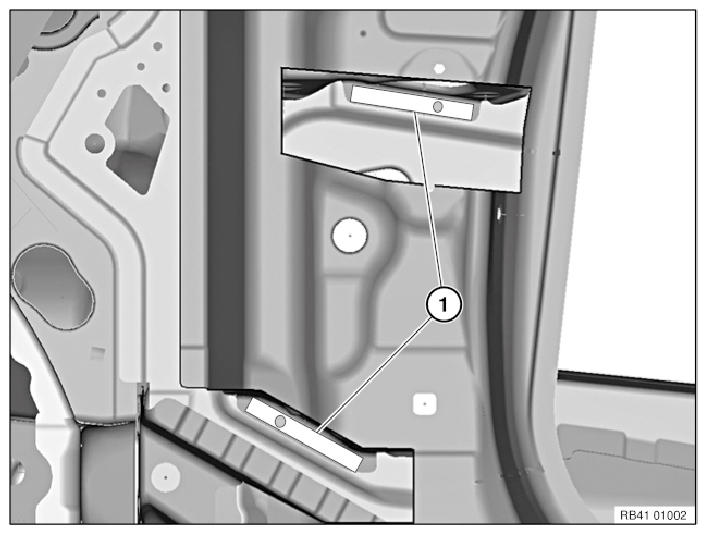

Open weld joint (1).

Fig 7: Identifying Weld Joint

Courtesy of BMW OF NORTH AMERICA, INC.

View from inside.

Open weld joint (1).

Feed out water drain hose (2) for slide/tilt sunroof.

Fig 8: Identifying Weld Joint And Water Drain Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Roughly mark severance cut (1).

Cut out A-pillar metal section (2) and A-pillar reinforcement underneath.

Fig 9: Identifying A-Pillar Metal Section And Severance Cut Mark

Courtesy of BMW OF NORTH AMERICA, INC.

Release bonded connection (1).

Fig 10: Identifying Bonded Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Remove holder (1) for side wall.

Roughly mark severance cut (2).

Cut out A-pillar metal section and A-pillar reinforcement underneath.

Remove cavity acoustic baffle (3).

Fig 11: Identifying Holder, Severance Cut And Cavity Acoustic Baffle

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 12: Identifying Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

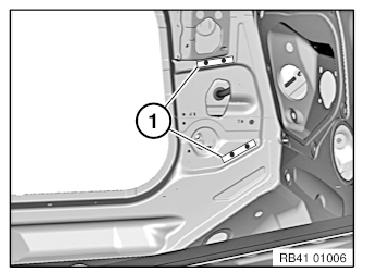

Drill through 2 welded connections in areas (1) with 6.8 mm dia. drill.

NOTE: New part is joined in areas (1) by bonding-riveting technology.

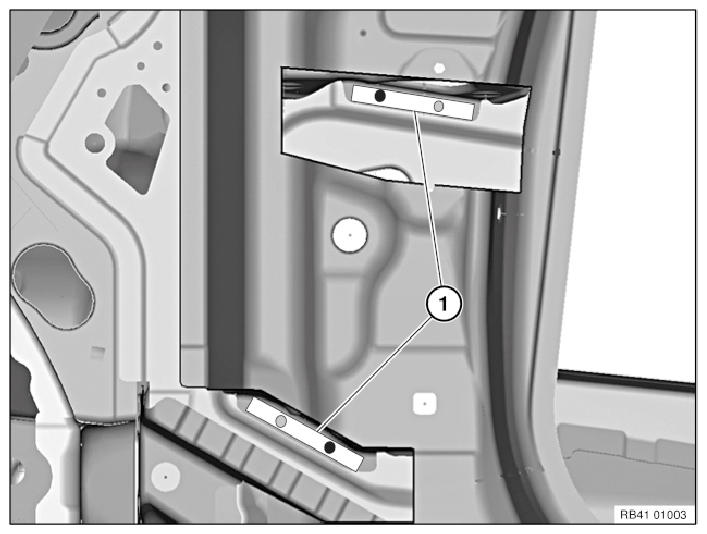

Fig 13: Identifying Rivet Positions

Courtesy of BMW OF NORTH AMERICA, INC.

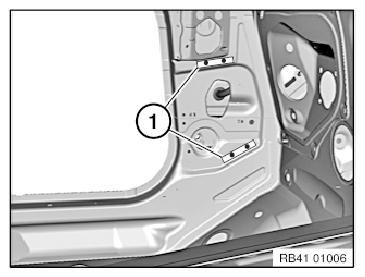

Additional rivet positions are required for installation in areas (1) for strengthening reasons.

Additional rivet positions (black, number 2)
Welded connections ex works (grey, number 2)

Drill additional rivet positions with 6.8 mm dia. drill in accordance with schematic drawing.

Open remaining areas of welded connections (grey, number 2) through grinding.

Release bonded connections in areas (1) and remove A-pillar.

New part preparation

Mark severance cuts on new parts in accordance with severance cuts on vehicle and cut.

Prepare REINFORCEMENT PLATES at severance cuts.

Adjust new parts to fit with alignment bracket or universal mounting.

Fig 14: Identifying Blind Rivets Bore Holes Dimension And Joint Area

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Joining in area (1) is performed using bonding-riveting technology.

Create bore holes (2) to (3) for blind rivets N7 as per specified dimensions:

(2): Dia. 6.8 mm bore hole in accordance with dimension a = 10 mm from component edge.

(3): Dia. 6.8 mm bore hole in accordance with dimension b = 55 mm from bore hole (2).

Fig 15: Identifying Blind Rivets Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

Create bore holes (1) and (2) for blind rivets N1 and N3 in accordance with schematic diagram:

(1): Bore hole dia. 6.8 mm.

(2): Bore holes dia. 4.2 mm.

Transfer bore holes (1) created during removal to new part.

Also drill new part through holes (1) with drill Ø 6.8 mm.

Remove new parts and deburr bore holes.

NOTE: In all further joint areas, prepare new parts and body for joining by welding.

Fig 16: Identifying Bore Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Structure bonding!
OBSERVE preparation of bonding surfaces.

Installing door post, front

Clean bonding surfaces (1) with cleaning agent R1.

Apply sealant to cavity sealing (2). See INSTALLING A CAVITY ACOUSTIC BAFFLE (EXPANDED) and INSTALLING A CAVITY ACOUSTIC BAFFLE (NOT EXPANDED) .

Apply adhesive to bonding surfaces.

Fig 17: Identifying Adhesive Applying Areas On Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Install new parts and reinforcement plates with alignment bracket or universal mount.

At the same time, make sure water drain hose of slide/tilt sunroof is correctly fitted.

In areas (1), rivet new part with blind rivets N7.

Fig 18: Identifying Bore Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1), rivet new part with blind rivets N7.

Weld new part in area (2).

Fig 19: Identifying Blind Rivets And Welded Areas

Courtesy of BMW OF NORTH AMERICA, INC.

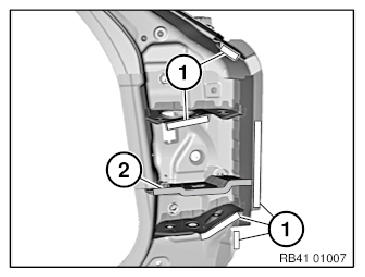

Install side frame connection new part and rivet with blind rivets.

Area	Blind rivet N7	Blind rivet N3
1	1
2		2

Weld new parts in the remaining joint areas.

Fig 20: Identifying Blind Rivet Joint Areas

Courtesy of BMW OF NORTH AMERICA, INC.

MAG-weld new part in areas (1).

To do so, apply 10 mm long fillet welds at spacing of 15 mm.

Weld new part in the remaining joint areas.

Fig 21: Identifying Wheel Arch Component MAG Welding Area

Courtesy of BMW OF NORTH AMERICA, INC.
