41 34 041 Stripping Operations - Replacing Tail Panel

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.

Disconnect battery
Remove bumper trim
Remove bumper carrier
Remove center guide
Remove guide for bumper on left and right
Remove luggage compartment floor trim panel
Remove luggage compartment storage compartment
Remove tail panel trim at top
Remove left luggage compartment wheel arch panel
Remove right luggage compartment wheel arch panel
Remove striker for rear lid
Remove rear lights
Partially detach tailgate seal

NOTE: Operation is described on the left side. Right side identical.

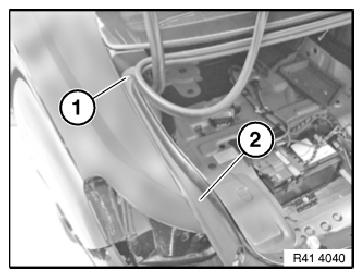

Lift out clip (1) and remove water channel cover (2).

Fig 1: Identifying Water Channel Cover And Clip

G08511120

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Operation is described on the left side. Right side identical.

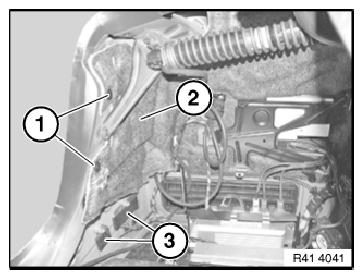

Lever out expanding rivets (1) and fold sound insulation (2) to one side.

Release nuts and remove ground support point (3).

Tightening torque 41 34 2AZ .

Fig 2: Identifying Expander Rivets, Ground Support Points And Sound Insulation

G08511121

Courtesy of BMW OF NORTH AMERICA, INC.

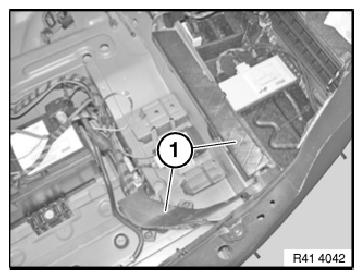

Release cable channel covers (1) and lay towards front.

Fig 3: Identifying Cable Channel Covers

G08511122

Courtesy of BMW OF NORTH AMERICA, INC.

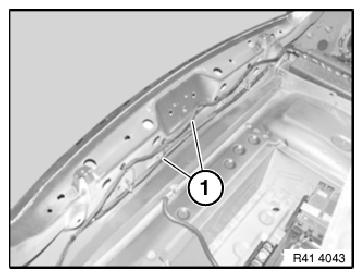

Release wiring harnesses (1) from rear trim panel and lay towards front.

Fig 4: Identifying Rear Trim Panel Wiring Harnesses

G08511123

Courtesy of BMW OF NORTH AMERICA, INC.

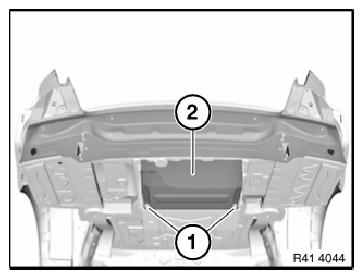

View from below.

Release nuts (1) and remove cover (2).

Fig 5: Identifying Cover And Nuts

G08511124

Courtesy of BMW OF NORTH AMERICA, INC.
