51 24 326 Removing And Installing/Replacing Right Tension Spring With Damper For Tailgate

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove right LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

WARNING: Support tailgate in fully opened position with suitable apparatus. Danger of injury!

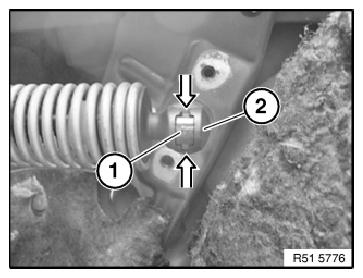

Press retainer (1) together.

Ball socket (2) jumps out of ball stud.

WARNING: The tailgate will drop down if it is not supported.

Fig 1: Pressing Retainer

G08511230

Courtesy of BMW OF NORTH AMERICA, INC.

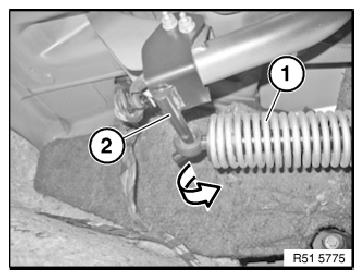

Unhook tension spring with damper (1) from tailgate hinge (2).

Fig 2: Removing Tension Spring, Damper From Tailgate Hinge

G08511231

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

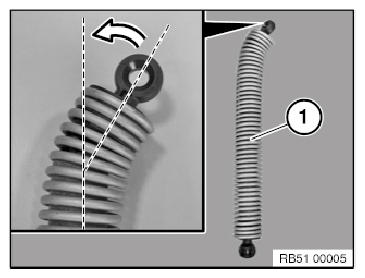

On refitting the tension springs (1), these have to be bent to the original condition by hand.

Fig 3: Bending Tension Spring

G08511232

Courtesy of BMW OF NORTH AMERICA, INC.

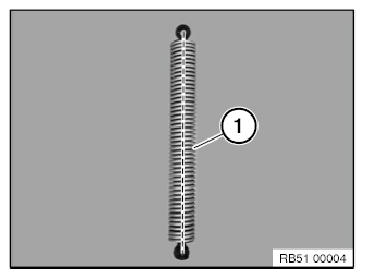

The graphic shows the tension springs (1) in original condition.

Fig 4: Identifying Tension Spring

G08511233

Courtesy of BMW OF NORTH AMERICA, INC.
