41 31 010 Replacing Outer Roof Skin (Version With Slide/Tilt Sunroof): Notes
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Observe procedures for REPAIR STAGE 2 .

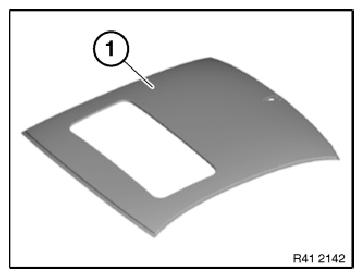

Following parts are required :
- Roof outer skin
Additional required parts (not pictured):
| Description | Part number | Quantity |
|---|---|---|
| Sound insulation | 07 14 6 949 300 | 1 |
| Blind rivets for holder | 51 41 7 068 752 | 4 |
| Blind rivets for earth strap | 07 14 7 216 857 | 8 |
Additionally required CONSUMABLES :
| Material | Quantity |
|---|---|
| Adhesive K2 | 3 |
| Adhesive K5a | 1 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
Tools also required:
- Roof pliers set, order number: 81 43 2 158 707
NOTE:
Store adhesive at room temperature.
Adhere to adhesive processing temperature of 15 - 28 °C without fail.
Prior to installation, store roof outer skin and vehicle for at least 12 hours at room temperature (17 °C to 35 °C).
