Applying Adhesive

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Apply K2 adhesive in areas (1).

Guide nozzle at an angle of max. 60° along adhesive flange.

Cross-section of adhesive bead approx. 4 - 5 x 10 mm.

Apply a short reference bead at an appropriate point for later checking.

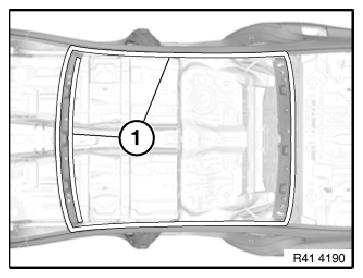

Fig 1: Identifying Roof Outer Skin Adhesive Residues

Courtesy of BMW OF NORTH AMERICA, INC.

Apply a little more adhesive K2 to nodes (1) of A- and C-pillars.

NOTE: Excess material is later used for spreading to side frame.

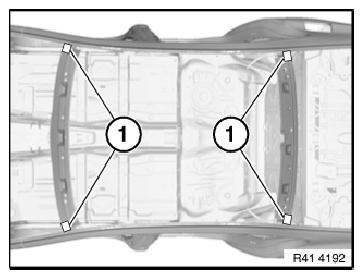

Fig 2: Identifying Adhesive Applying Areas On A And C-Pillars

Courtesy of BMW OF NORTH AMERICA, INC.

Apply a little less adhesive (1) in area of holders (1).

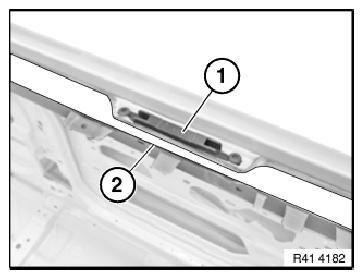

Fig 3: Identifying Adhesive Applying Area On Holders

Courtesy of BMW OF NORTH AMERICA, INC.
