3.0 Applying The Adhesive

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

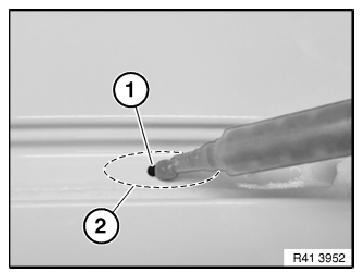

Fill the hole (1) created by the torn-off T-pin with adhesive and spread over a length of approx. 4 cm (2) in the roof channel.

IMPORTANT: The hole must be completely filled or sealed with adhesive!

Fig 1: Applying Adhesive Bead On Roof Channel Hole

G08511032

Courtesy of BMW OF NORTH AMERICA, INC.

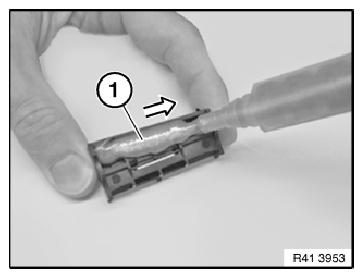

Apply adhesive bead (1) to the underside of the clip.

In so doing, fill channel of clip with adhesive.

Fig 2: Applying Adhesive Bead On Clip

G08511033

Courtesy of BMW OF NORTH AMERICA, INC.

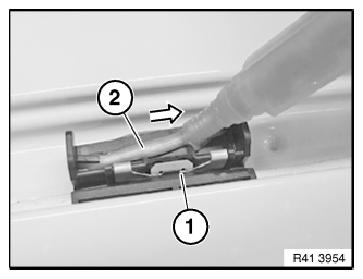

Move clip (1) into position and secure by hand.

If the adhesive is not already emerging evenly through the channel, apply additional adhesive from above.

Adhesive bead (2) must be below the clip height.

Fig 3: Applying Adhesive Bead Below Clip Height

G08511034

Courtesy of BMW OF NORTH AMERICA, INC.

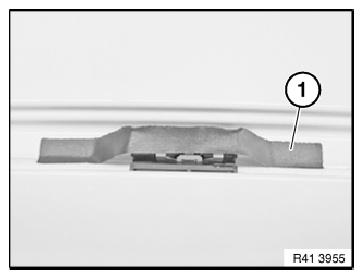

Secure clip with adhesive tape (1), approx.

150 mm long.

Apply adhesive tape in direction of travel.

Fig 4: Identifying Adhesive Tape Applying Areas On Roof Strip

G08511035

Courtesy of BMW OF NORTH AMERICA, INC.
