41 63 000 Removing And Installing Flap For Fuel Filler Neck

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The illustration is a schematic representation and is to be applied to the relevant vehicle type.

Open fuel filler flap.

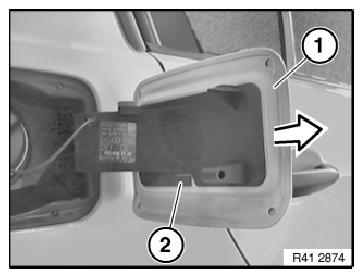

Lever out lock (2) and detach fuel filler flap (1) in direction of arrow.

Fig 1: Removing Lock And Fuel Filler Flap

Courtesy of BMW OF NORTH AMERICA, INC.
