41 12 557 Stripping Operations - Replacing Luggage Compartment Floor, Middle (Tail Panel Removed)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
- Remove exhaust system
- Remove heat shield
- Remove spare wheel well trim panel at front and rear.

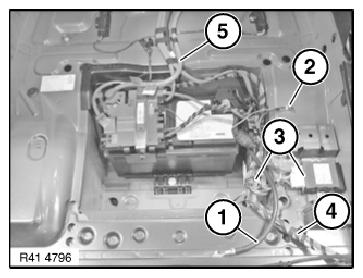

Remove BATTERY .
Remove NEGATIVE BATTERY CABLE (1).
Release nut (2) and remove ground connection.
Tightening torque 41 34 2AZ .
Disconnect plug connections and remove control units (3).
Release wiring harness (4) and place to one side.
Release positive battery cables (5) and lay to one side.
