41 12 535 Stripping Operations - Replacing Luggage Compartment Floor And Both Side Members (Tail Panel Removed)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.

The following list basically represents the removal sequence.

Remove left and right rear wheel arch covers
Remove exhaust system
Remove heat shield

Release holder (1) for wiring harness and lay to one side.

Release holder for control units (2).

Disconnect plug connections and remove control units (2).

Remove tank venting valve (3).

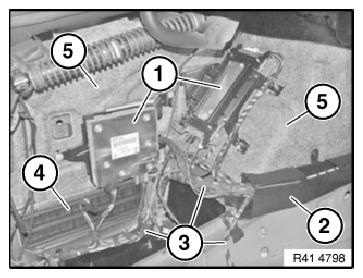

Fig 1: Identifying Holder, Control Units And Tank Venting Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Release holder for control units (1).

Disconnect plug connections and remove control units (1).

Release cable channel (2) and wiring harness (3) and place to one side.

Release latch mechanisms and remove rear ventilation (4).

Remove soundproofing (5).

Installation note:

The rear ventilation (4) must not be damaged. (watertightness).

All latch mechanisms must engage audibly.

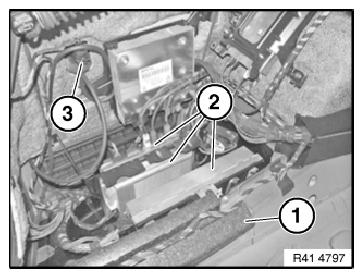

Fig 2: Identifying Cable Channel, Wiring Harness, Rear Ventilation, Soundproofing And Control Units

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable channel cover (1) and place to one side.

Remove storage compartment (2).

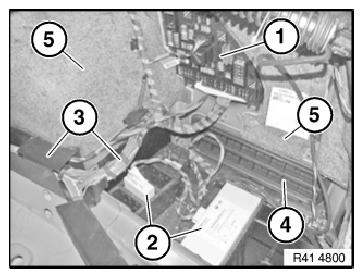

Fig 3: Identifying Cable Channel Cover And Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Remove POWER DISTRIBUTION BOX in passenger compartment (1).

Disconnect plug connections and CONTROL UNITS (2) with holder.

Release wiring harness (3) and place to one side.

Release latch mechanisms and remove ventilation (4).

Remove soundproofing (5).

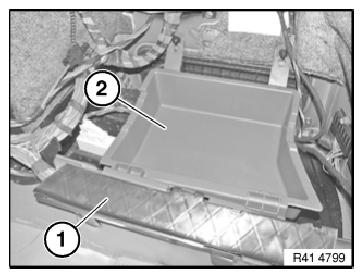

Fig 4: Identifying Passenger Compartment, Control Units, Soundproofing, Wiring Harness And Ventilation

Courtesy of BMW OF NORTH AMERICA, INC.

Remove BATTERY .

Remove NEGATIVE TERMINAL BATTERY CABLE (1).

Release nut (2) and remove ground connection.

Tightening torque 41 34 2AZ .

Disconnect plug connections and remove control units (3).

Release wiring harness (4) and place to one side.

Release positive battery cables (5) and lay to one side.

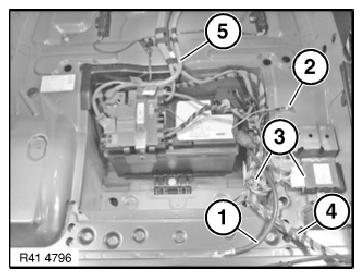

Fig 5: Identifying Control Units, Battery Cables, Wiring Harness And Nut
