41 33 040 Replacing Front Left Or Right Side Wall Holder

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Read contents of BODY, GENERAL .
Side wall removed.
Transfer the systematic diagram onto the respective holder version.

General information:

Observe procedures for REPAIR STAGE 2 .

The following new body parts are required :

(1) Holder, side wall, front (variant 1)
(2) Holder, side wall, front (variant 2)

Following CONSUMABLES are required:

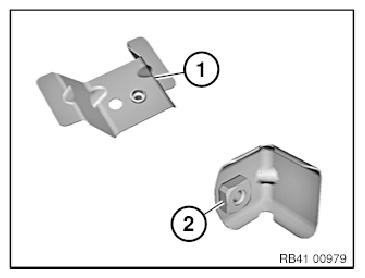

Fig 1: Identifying Front Side Wall Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Adhesive K5a	1
Blind rivets N3	2
Cleaning agent R1	1

Removal of side wall holder (variant 1):

Release welded connections in areas (1) and remove holder (2).

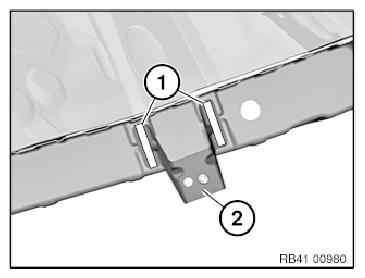

Fig 2: Identifying Holder And Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Adjust new part in conjunction with side panel in front to fit.

In area of bonding surfaces (1), set 2 4.2 mm dia. bore holes (2) for blind rivetsN3.

Remove new part and deburr holes.

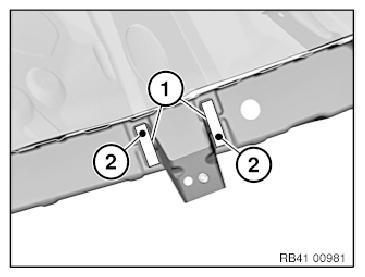

Fig 3: Identifying Bonding Surfaces And Blind Rivets Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind bonding surfaces down or off.

Installation of side wall holder:

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install new part and rivet with blind rivets.

Removal of side wall holder (variant 2):

Release welded connection in area (1) and remove holder (2).

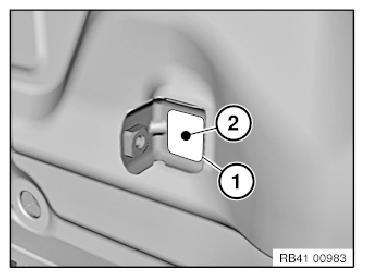

Fig 4: Identifying Holder And Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Fit in new part.

In area of adhesive surface (1), drill a 4.2 mm dia. bore hole (2) for blind rivet N3.

Remove new part and deburr holes.

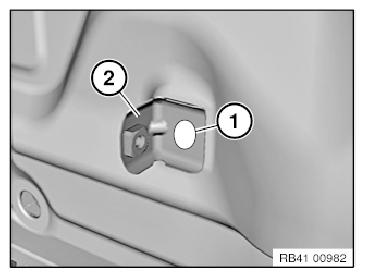

Fig 5: Identifying Adhesive Surface Applying Areas On Blind Rivet Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind bonding surfaces down or off.

Installation of side wall holder:

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surface.

Install new part and rivet with blind rivet.
