41 5.... Adjust Door

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

The BATTERY EARTH LEAD must be clamped off on vehicles with AFGS active pedestrian protection!

Do not damage adjoining body components!

Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.

NOTE: Observe 41 00... BODY GAP DIMENSIONS .

The door must be provided with all add-on parts for correct adjustment.

Adjust screwed body components from rear to front.

The following illustrations are schematic representations and are to be applied to the relevant vehicle type.

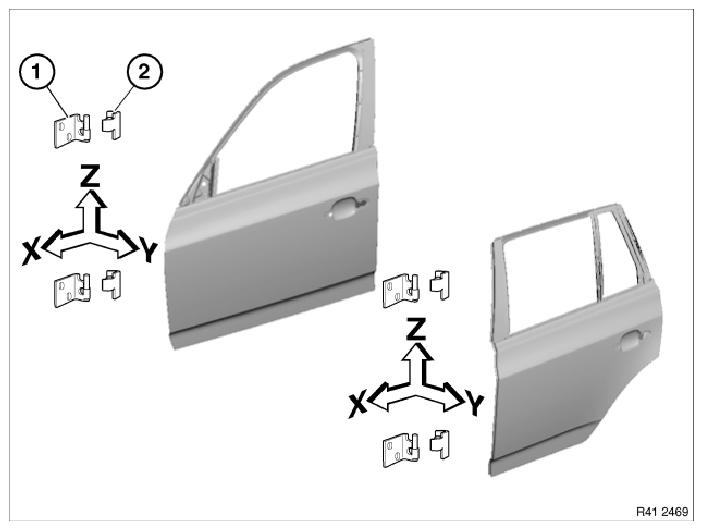

Fig 1: Identifying Door Hinges

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen striker and remove, If necessary.

Slacken screws for hinge (2) on door until door can still just be moved.

Front door: Tightening torque 41 51 2AZ .

Rear door: Tightening torque 41 52 2AZ .

If adjustment range is not sufficient, slacken screws for hinges (1) on body.

NOTE: Screw connections only accessible from inside.
Front door: Tightening torque 41 51 3AZ .
Rear door: Tightening torque 41 52 3AZ .

Check that adjoining body components are flush in terms of height and correct if necessary.

NOTE: Height adjustment of door must not be influenced by striker.
When the door is closed, the striker must not touch or scrape against the door lock.
Look out for scratch marks.

Fig 2: Identifying Door Mark

Courtesy of BMW OF NORTH AMERICA, INC.

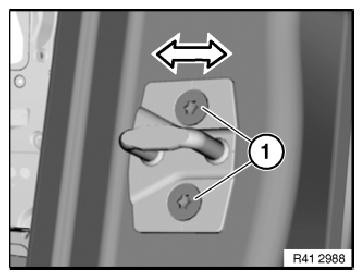

Tighten down screws (1) until striker can still just be moved.

Move striker sideways in order to adjust transition between door and adjoining bodywork parts.

Tightening torque 51 21 2AZ /51 22 2AZ.

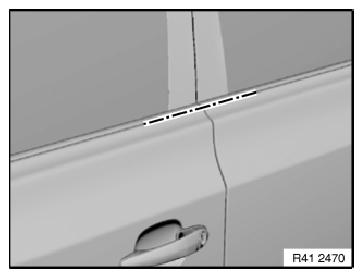

Fig 3: Adjusting Transition Between Door And Adjoining Bodywork Parts

Courtesy of BMW OF NORTH AMERICA, INC.

After Installation note

If the hinge is slackened on the body side, the area of the hinge must be sealed in a u-shape with sealant (1).

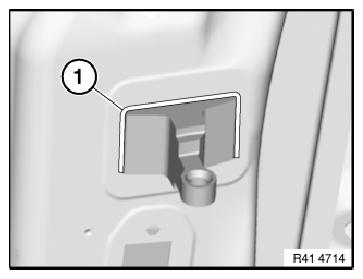

Fig 4: Identifying Sealant Applying Area On Hinge

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten all screws to specified torque.
Touch up unpainted surfaces in the appropriate color.
If necessary, adjust front door.
