51 23 400 Removing And Installing/Replacing Left Or Right Actuator (Active Pedestrian Protection, Not Deployed) (Vehicles Up To 09/2011): Notes
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Adhere to SAFETY INSTRUCTIONS so as to avoid a danger of injury by the actuator.
The BATTERY NEGATIVE LEAD must be clamped off prior to work on the actuator or engine compartment lid!
Do not exert any force on the actuator.
Incorrect handling may result in triggering of the actuator and thereby cause serious injury.
IMPORTANT:

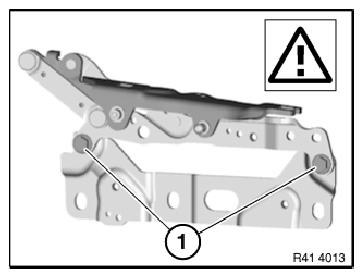

After the actuator has been installed, retaining screws (1) must be removed!
The retaining screws are required as aids to fitting the actuator.
If the retaining screws are not removed after the actuator has been installed, active pedestrian protection will not function.
The retaining screws are required as aids to fitting the actuator.
If the retaining screws are not removed after the actuator has been installed, active pedestrian protection will not function.
