Removing actuator

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Remove protective caps and screw in and tighten retaining screws M8 (1).

Remove resetter (2).

NOTE: The retaining screws are required as aids to fitting the actuator.

After the actuator has been installed, retaining screws must be removed again!

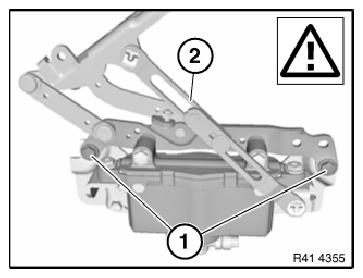

Fig 1: Identifying Resetter And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and slowly raise actuator (2) until connector on underside of actuator is accessible.

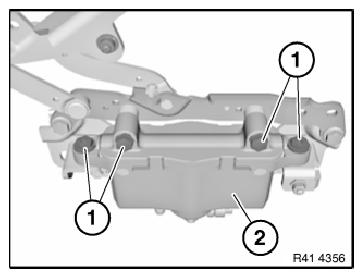

Fig 2: Identifying Actuator And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull lock (1) in direction of arrow.

Then press together connector fastener on both sides and detach connector (2).

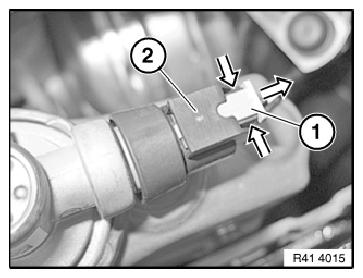

Fig 3: Pulling Lock

Courtesy of BMW OF NORTH AMERICA, INC.
