Installing actuator

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

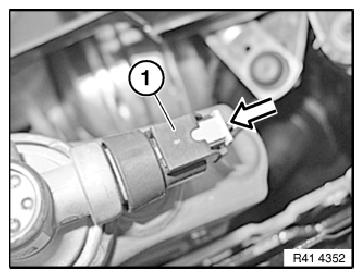

Connect plug (1) to actuator.

Fig 1: Connecting Plug To Actuator

G08511212

Courtesy of BMW OF NORTH AMERICA, INC.

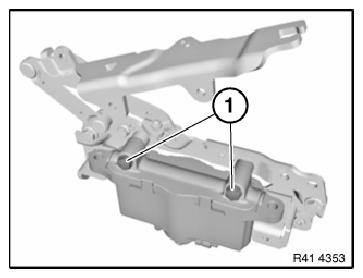

Secure actuator screws (2).

Tighten screws hand-tight only.

Fig 2: Identifying Actuator Screws (Hand Tight Only)

G08511213

Courtesy of BMW OF NORTH AMERICA, INC.

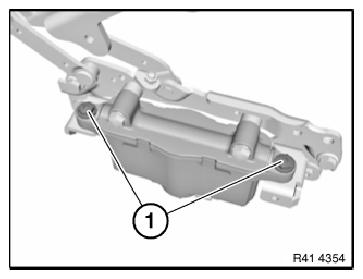

Insert screws (1) and tighten down

Tightening torque 41 61 5AZ .

Fig 3: Identifying Actuator Screws

G08511214

Courtesy of BMW OF NORTH AMERICA, INC.

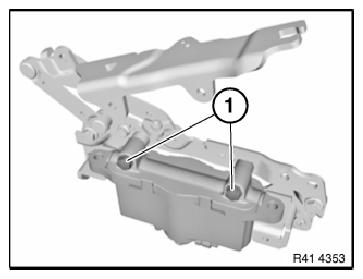

Tighten down screws (1).

Tightening torque 41 61 4AZ .

Fig 4: Identifying Actuator Screws (Hand Tight Only)

G08511215

Courtesy of BMW OF NORTH AMERICA, INC.

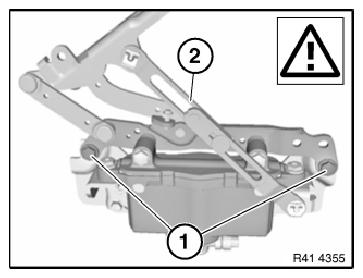

Fit resetter (2).

Remove retaining screws (1).

IMPORTANT: After the actuator has been installed, retaining screws (1) must be removed again!

If the retaining screws are not removed after the actuator has been installed, active pedestrian protection will not function.

Seal holes of retaining screws with protective caps.

Comply with notes regarding handling active PEDESTRIAN PROTECTION .

Fig 5: Identifying Resetter And Retaining Screws

G08511216

Courtesy of BMW OF NORTH AMERICA, INC.
