Removing actuator

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Remove resetter (1).

Release screws (2) and slowly raise actuator until connector on underside of actuator is accessible.

Fig 1: Identifying Resetter And Screws
G08511200Courtesy of BMW OF NORTH AMERICA, INC.

Pull lock (1) in direction of arrow.

Then press together connector fastener on both sides and detach connector (2).

Installation note:

PROCEDURE  after actuator triggering.

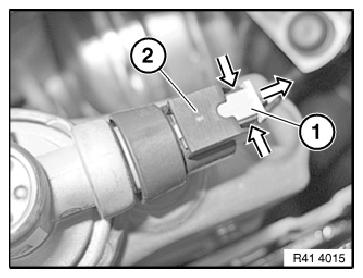

Fig 2: Pulling Lock
G08511201Courtesy of BMW OF NORTH AMERICA, INC.
