41 00... Use Of Materials In Outer Skin
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

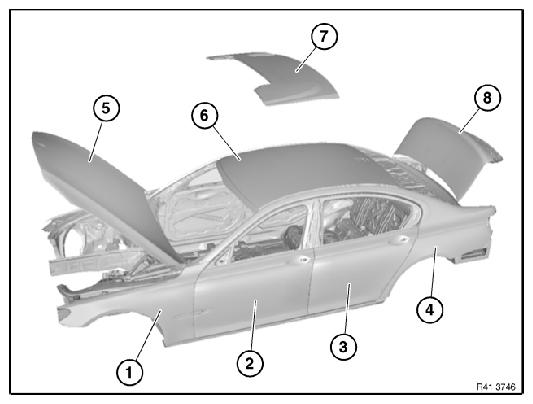

The following illustration is a schematic diagram of all the body variants.
Apply this illustration to the relevant vehicle.
All components not listed in the table below are composed of established sheet steel qualities.
| Component | Vehicle | Material |
|---|---|---|
| (1) Side wall, front | F01, F02, F04, F10, F11 | Aluminium |
| F12, F13, F06 | Plastic (thermoplastic) | |
| (2) Front door | F01, F02, F04, F06, F07, F10, F11, F12, F13 | Aluminium |
| (3) Rear door | F01, F02, F04, F06, F07, F10, F11 | Aluminium |
| (5) Engine compartment lid | F01, F02, F04, F06, F07, F10, F11, F12, F13 | Aluminium |
| (6) Hardtop/roof | F01, F02, F04 | Aluminium |
| (7) Soft top compartment lid | F12 | Plastic (thermoplastic) |
| (8) Tailgate | F07 | Aluminium |
| F06, F12, F13, | Plastic (thermoplastic) |
