41 00... Repair Solution For Straight Shank/Hexagon Rivet Nut
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Protection measures!
- Wear safety goggles
- Wear protective gloves
IMPORTANT:

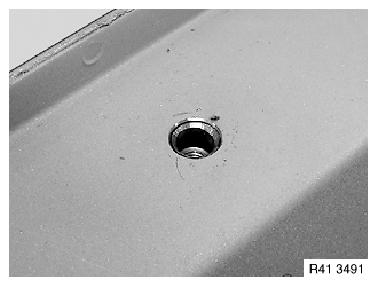

To prevent the material from tapering, do not drill out the rivet head.

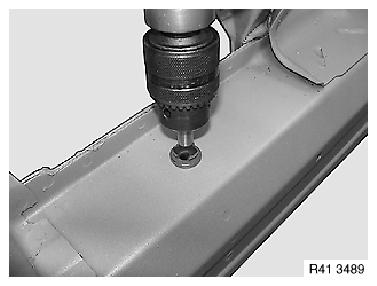

- Carefully spot-drill rivet head with a larger drill bit/countersink
IMPORTANT: Avoid paintwork damage

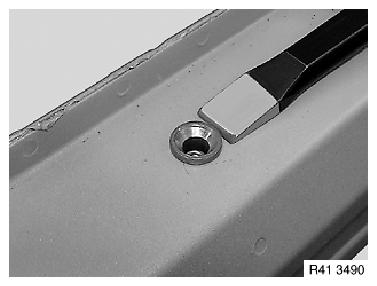

- Knock rivet head away with a chisel

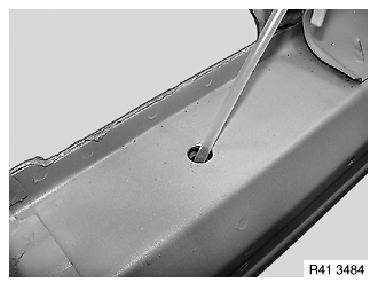

- Drive through rivet shank into cavity, remove if necessary

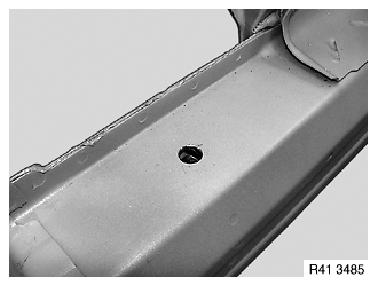

- Clean component, eliminate paintwork damage if necessary
If the rivet shank can be removed:
IMPORTANT: To avoid corrosion, stop chips/dirt/debris by means of cavity sealing.Follow INSTRUCTIONS ON CORROSION PROTECTION .
- Preserving cavity
If the rivet shank cannot be removed:
WARNING:
Risk of injury!
Observe NOTES ON CAVITY FOAM .
IMPORTANT:
To avoid corrosion and rattling noises, stop chips/dirt/debris and rivet nut shank with cavity foam.
Remove foam remnants with isohexane (benzine).
- 5. Stop rivet shank by means of specific foaming
- 6. Set rivet nut with hand rivet gun
NOTE:
Fit rivet nut as quickly as possibly, ideally before the cavity foam hardens.

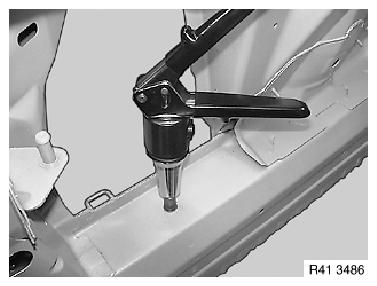

Hexagon/straight shank rivet nut (up to thread M8) with hand rivet gun ZS308
IMPORTANT:
Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.
NOTE:
According to the manufacturer, the pictured tool is suitable up to an M8 thread.

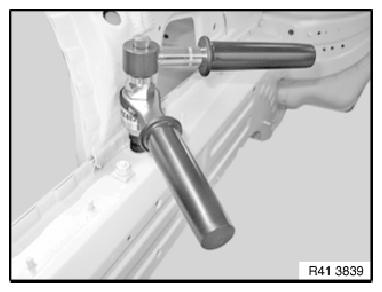

Hexagon/straight shank rivet nut (up to thread M12) with hand rivet gun MB512
IMPORTANT:
Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.
NOTE:
According to the manufacturer, the pictured tool is suitable up to an M12 thread.
