41 00... Reinforcement Plate With Stud Bolt (Bonded): Notes

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

In the case of a partial replacement piece, a body component is cut at a point described in the repair instructions.

A reinforcement plate is bonded in to ensure sufficient strength.

Reinforcement plates are available as new parts and must also be used.

NOTE: The following graphics serve as general illustrations of reinforcement plate repair work. They are applicable to sectional repairs in the outer skin area.

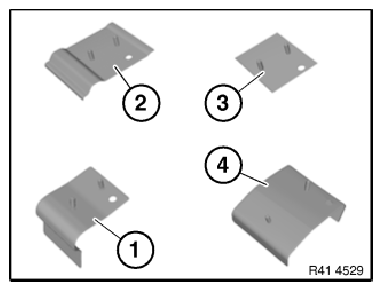

Overview of reinforcement plates:

Reinforcement plate, sill
Reinforcement plate, C-pillar
Reinforcement plate, universal
Reinforcement plate, C- or D-pillar
Lock nuts (not pictured)

Plastic nut dia. 18 mm, part number 07 14 1 943 122
Expansion nut dia. 22 mm, part number 07 14 7 169 847

Fig 1: Identifying Reinforcement Plate Sill, C-Pillar, Universal And C/D Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Mark component in accordance with dimension a and cut.

Fig 2: Identifying Reinforcement Plate Cutting Mark Position

Courtesy of BMW OF NORTH AMERICA, INC.
