52 24 400 Replacing seat cover for rear seat

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary work:

Remove SEAT FRAME .

Detaching cover and upholstery:

Release all clamps in designated areas
Remove seat cover from upholstery
Remove all remaining clamps from seat cover and/or upholstery

Fig 1: Identifying Seat Cover Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

Pull all trim wires out of seat cover
If necessary, cut in mounting for trim wires of new cover
Push trim wires into new seat cover

Fig 2: Identifying Seat Cover With Trim Wires
Courtesy of BMW OF NORTH AMERICA, INC.

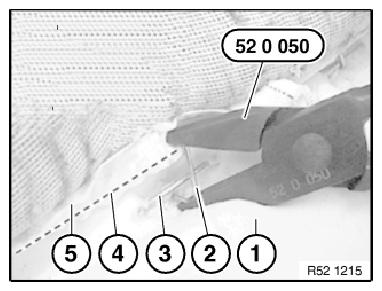

Installation note:

Bend new clamp (2) closed with pliers 52 0 050 .

Upholstery
Clamps
Trim wire in seat cover
Trim wire in upholstery
Seat cover

Fig 3: Inserting Retainer Using Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.
