52 25 405 Replacing left or right rear seat cover

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary work:

Remove LEFT OR RIGHT REAR SEAT .

Lever out cover welt in marked area.

Disconnect all cable straps from wiring harness.

Installation note:

Replace defective cable straps.

Fig 1: Disconnecting Cable Straps From Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Release all clamps in marked areas.

Fig 2: Identifying Clamps Releasing Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and upholstery:

Release all clamps in designated areas.
Remove seat cover from upholstery.
Remove all remaining clamps from seat cover and/or upholstery.

Fig 3: Identifying Cover And Upholstery Clamp Areas
Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

Pull all trim wires out of seat cover
If necessary, cut in mounting for trim wires of new cover
Push trim wires into new seat cover

Fig 4: Pulling Trim Wires Out Of Seat Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

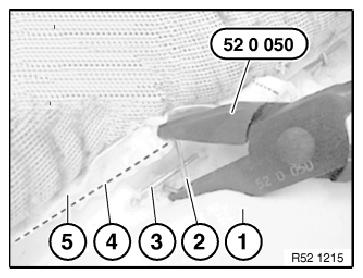

Bend new clamp (2) closed with pliers 52 0 050 .

Upholstery
Clamps
Trim wire in seat cover
Trim wire in upholstery
Seat cover

Fig 5: Inserting Retainers Using Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.
