52 25 015 Removing and installing/replacing backrest for left or right rear seat
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear HEAD RESTRAINT .
- Remove left or right REAR SEAT .
- Move backrest completely forwards
Installation:
- Microencapsulated screws and nuts (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws/nuts must not be retightened
- Clean thread of nut beforehand in event of repeated use
NOTE:
For purposes of clarity the following operations are shown in the released state.
Detach cover (1) from Velcro-type fastener.
Pull cover (1) upwards out of guide from four-bar lever.
Installation:
Make sure cover guide is correctly seated on four-bar lever.
Unscrew nuts (1).
Installation:
Replace nuts (1).
Tightening torque 52 25 4AZ .
Release screw (1).
Installation:
Replace screw (1).
Tightening torque 52 25 5AZ .
Unscrew nuts (1).
Installation:
Replace nuts (1).
Tightening torque 52 25 5AZ .

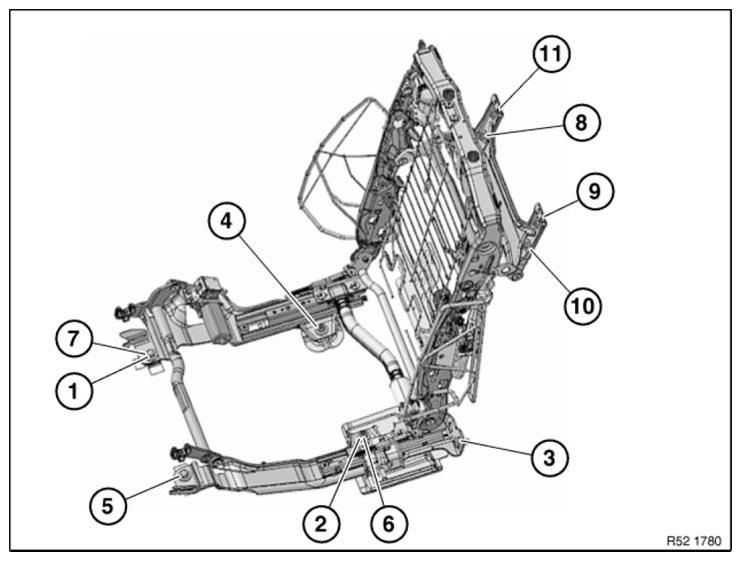

Installation sequence:
- Tighten nut (1) handtight
- Tighten nut (2) handtight
- Tighten down screws and nuts (3 to 11)
IMPORTANT:
Observe tightening sequence without fail. See Fig 6.
Raise complete rear seat and set forwards slightly.

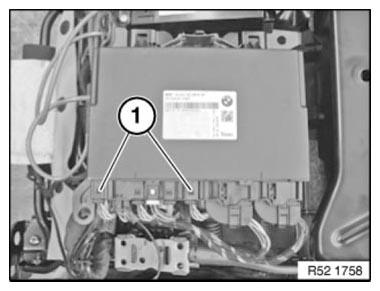

Unlock plug connections (1) and disconnect.
Remove rear seat.
