51 16 400 Removing and installing/replacing roller sunblind on fixed side window of left or right rear door

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Extend the roller sunblind (2).

Unclip the window guide cover (1).

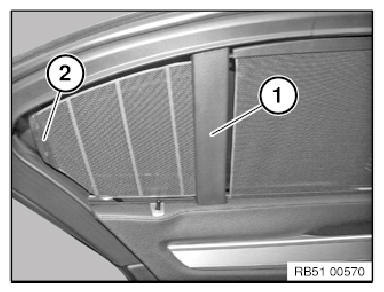

Fig 1: Identifying Window Guide Cover And Roller Sunblind

G08511445

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip the cam arm (1) from the roller sunblind (2).

Installation note:

Attach the cam arm (1) and secure with bolts.

Check function.

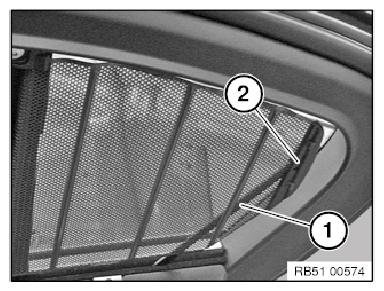

Fig 2: Identifying Cam Arm And Roller Sunblind

G08511446

Courtesy of BMW OF NORTH AMERICA, INC.

Pull the protective film off the adhesive tape (1) of the new sunblind cloth.

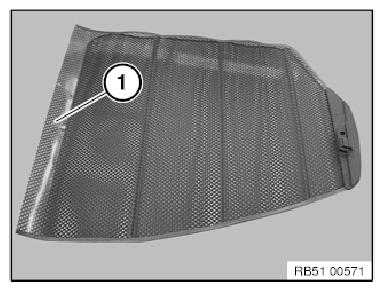

Fig 3: Identifying Adhesive Tape

G08511447

Courtesy of BMW OF NORTH AMERICA, INC.

Completely roll out the sunblind cloth (2).

Clean the rod.

Set the new sunblind cloth (1) inside exactly matching onto the defective sunblind cloth (2).

Retract both sunblind cloths together slowly in two turns.

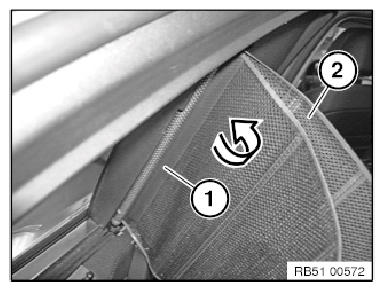

Fig 4: Rolling Sunblind Cloth

G08511448

Courtesy of BMW OF NORTH AMERICA, INC.

Completely extend the new sunblind cloth (1).

Pull off the defective sunblind cloth (2) in direction of arrow.

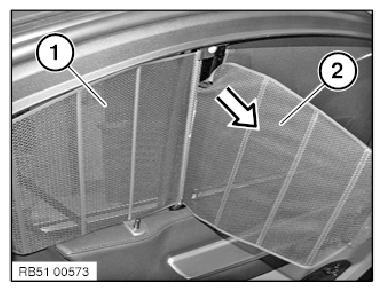

Fig 5: Removing Defective Sunblind Cloth

G08511449

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The sunblind cloth (1) must run behind the lug (2).

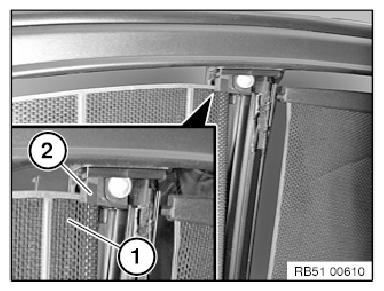

Fig 6: Identifying Sunblind Cloth And Lug

G08511450

Courtesy of BMW OF NORTH AMERICA, INC.
