51 16 225 Removing and installing/replacing decorative trim on center console on left or right

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SIDE TRIM PANEL ON CENTER CONSOLE .

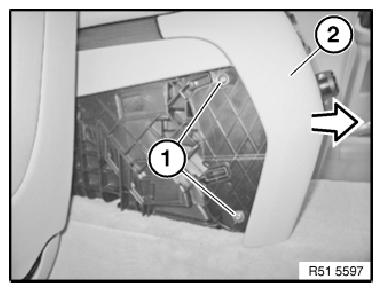

Release screws (1) on left and right sides.

Pull out rear center console trim (2) in direction of arrow.

IMPORTANT: Do not disconnect plug connections behind.

Fig 1: Removing Rear Center Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.

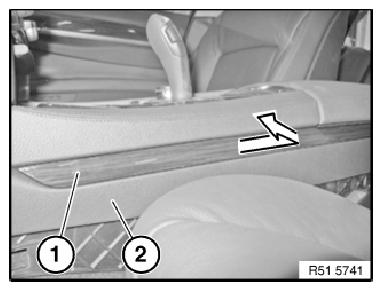

Slide decorative trim on center console in direction of arrow and remove from center console (2).

Fig 2: Sliding Center Console Decorative Trim

Courtesy of BMW OF NORTH AMERICA, INC.
