51 16 190 Removing and installing/replacing lock cylinder in center armrest

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322

Carefully lever front center armrest trim (1) with special tool 00 9 322 out of center console and remove.

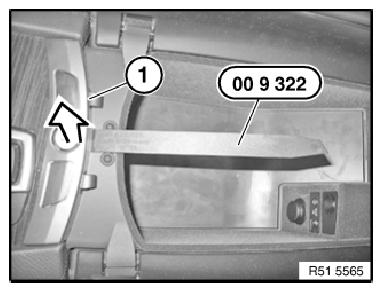

Fig 1: Removing Front Center Armrest Trim Using Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

Turn ignition key (1) in direction of arrow to left.

Carefully press lock cylinder (2) upwards with a suitable tool and remove from center armrest (3).

Installation:

Make sure lock cylinder (2) is correctly seated.

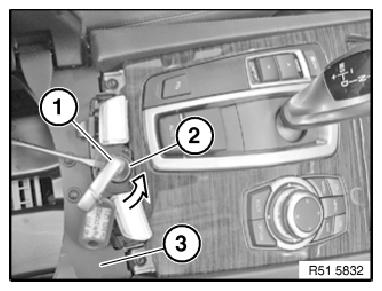

Fig 2: Removing Lock Cylinder From Center Armrest

Courtesy of BMW OF NORTH AMERICA, INC.
