51 16 000 Removing and installing or replacing mirror on left or right front door

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Unclip triangular mirror section trim (1).

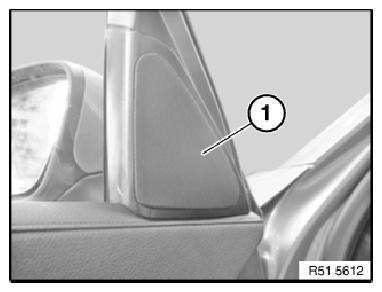

Fig 1: Identifying Triangular Mirror Section Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Protect door trim panel as pictured with adhesive tape (1) in work area.

Raise door seal (2) slightly.

Release screws (3), feed out mirror and disconnect associated plug connection.

Tightening torque 51 16 1AZ .

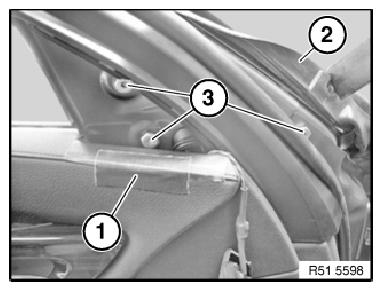

Fig 2: Identifying Adhesive Tape, Door Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of mirror must not be damaged or missing:

Seal on mirror base plate
Sound insulation in front door

Check function.
