51 71 015 Removing and installing/replacing the rear right underbody panelling

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Release the marked screws and nuts.

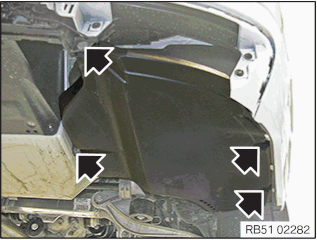

Fig 1: Identifying Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release the marked screws and nuts.

Remove the underbody panelling.

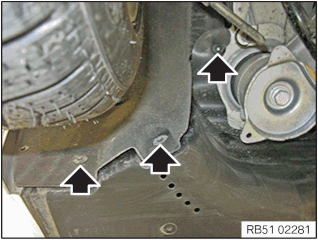

Fig 2: Identifying Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
