51 48 070 Removing and installing/replacing sound insulation on left or right rear door

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL .

With roller sun blind optional extra only:

Remove engine.

Release screws (1).

Tightening torque 51 16 20AZ .

Release screw (2).

Tightening torque 51 16 19AZ .

Fig 1: Identifying Rear Door Trim Panel Screws

G06885496

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Fig 2: Identifying Plug Connection

G06885497

Courtesy of BMW OF NORTH AMERICA, INC.

Feed lines out of cable holder (1).

Disconnect plug connection (3) at door lock.

Release quick-connect couplings (2).

Remove sound insulation (4).

Installation:

If necessary, replace cable holders (1).

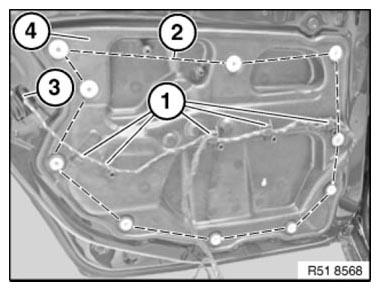

Fig 3: Identifying Cable Holder, Plug Connection, Quick-Connect Couplings And Sound Insulation

G06885821

Courtesy of BMW OF NORTH AMERICA, INC.
