51 48 060 Removing and installing sound insulation on left or right front door

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM .

IMPORTANT: Risk of mixing up plugs for door lock and control unit!
Mark relevant plugs prior to removal.

Disconnect plug connection (1).

Feed door wiring harness (2) out of cable holders (3).

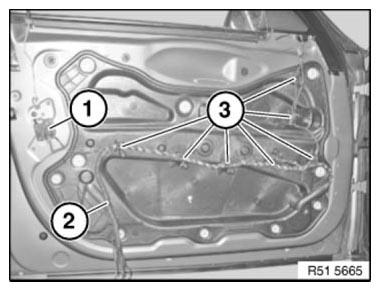

Fig 1: Identifying Plug Connection, Door Wiring Harness And Cable Holders

G06885528

Courtesy of BMW OF NORTH AMERICA, INC.

Release quick-release couplings.

Remove sound insulation (1).

Installation:

If necessary, replace defective quick-release couplings.

Make sure quick-release couplings are installed in correct position.

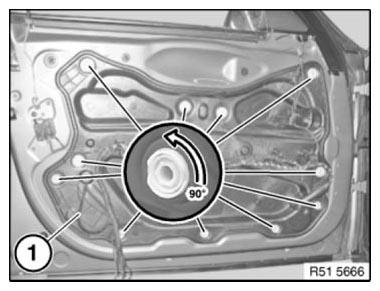

Fig 2: Removing Sound Insulation

G06885529

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seal on sound insulation must not be damaged.

Fig 3: Identifying Seal Applying Area On Sound Insulation

G04767687

Courtesy of BMW OF NORTH AMERICA, INC.
