51 21 370 Removing and installing/replacing cover (seal) on front door at bottom left or right

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Detach cover (1) downwards in direction of arrow from front door (2).

Installation:

Clip clips of cover (1) correctly into bores (3).

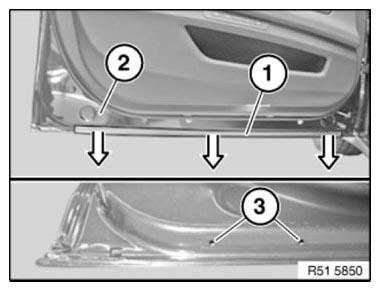

Fig 1: Disconnecting Cover From Front Door

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Note installation direction of cover (1).
Curve of sealing lip (2) must point away from door frame (3).

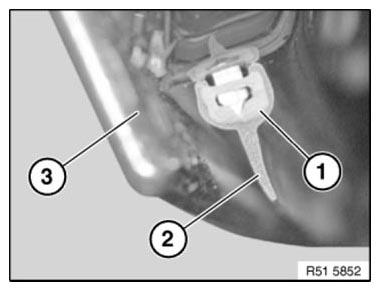

Fig 2: Identifying Cover, Sealing Lip And Door Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) of cover (2) must not be damaged.

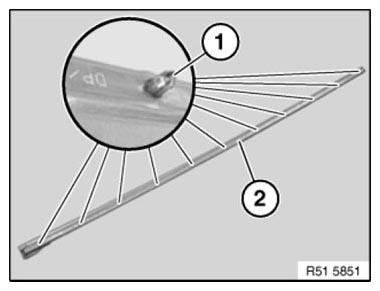

Fig 3: Identifying Clips And Cover

Courtesy of BMW OF NORTH AMERICA, INC.
