51 21 235 Removing and installing/replacing Bowden cable for inside door opener on left or right front door

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM .

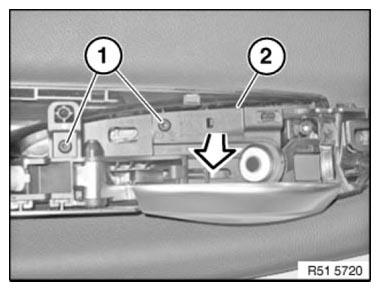

Release screws (1).

Carefully remove door opener (2) in direction of arrow.

IMPORTANT: If the door opener is pulled out too vigorously, there is a risk of damage to the door opener and the Bowden cable.

Fig 1: Removing Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.

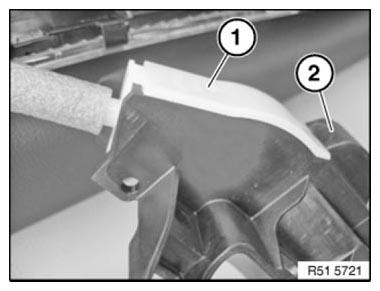

Unlock holder for Bowden cable (1) and feed out of door trim panel.

Fig 2: Identifying Bowden Cable And Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
