51 11 180 Removing and installing/replacing trim grille for bumper trim (center)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM GRILLE FOR BUMPER TRIM left and right.

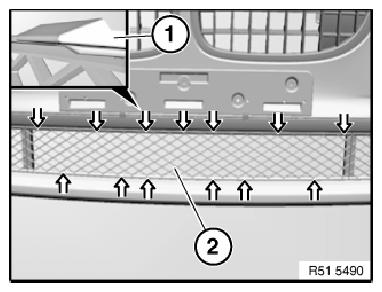

Unclip retaining lugs (1) and remove ornamental grille (2) towards front.
Installation:
Retaining lugs (1) must not be damaged.
