51 11 060 Removing and installing/replacing support for front lower bumper panel
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front BUMPER PANEL .
- Remove FRONT UNDERBODY PROTECTION in the working area.
- If necessary, remove impact absorber below

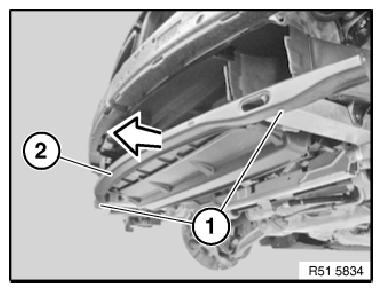

Release screws (1).
Tightening torque 51 11 10AZ .
Remove support (2) in direction of arrow.
