51 11 050 Removing and installing/renewing carrier for front bumper trim

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front BUMPER TRIM .
Remove fanfare horn on left and right. See REMOVING LEFT FANFARE HORN and REMOVING RIGHT FANFARE HORN .

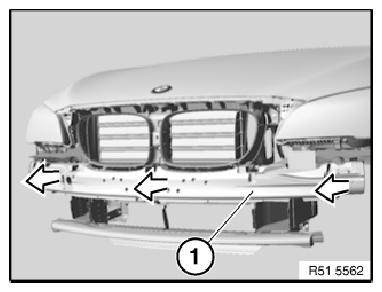

Remove impact absorber (1) towards front.

Fig 1: Removing Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on brake air duct (1).

Remove brake air duct (1) in direction of arrow.

Fig 2: Removing Brake Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

If ACC optional extra is installed:

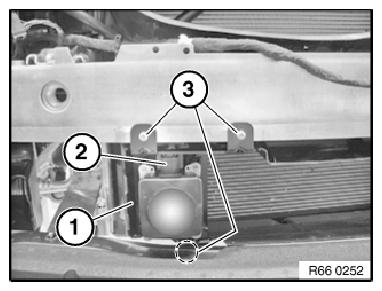

Release screws (3) on ACC sensor bracket (1).

Tightening torque: 66 31 1AZ .

Unfasten plug connection (2) and disconnect.

Remove ACC sensor bracket (1).

Fig 3: Identifying ACC Sensor Bracket, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

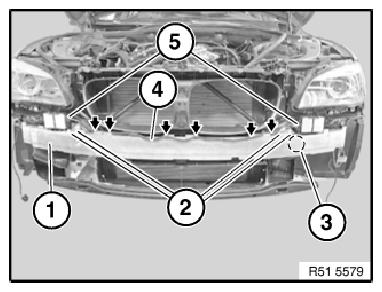

Unfasten screws (2).

Tightening torque: 51 11 4AZ .

Unclip wiring harness (4) at marked points.

If necessary, unlock and disconnect plug connections (5) on short-range sensors.

Remove carrier (1) towards front.

Installation:

Make sure locking sleeve (3) is correctly seated in carrier (1).

Fig 4: Locating ACC Sensor Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement (depending on version):

Remove short-range sensor bracket.
