51 47 440 Removing and installing/replacing rear carpet on seat pan

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BOTH FRONT SEATS
Remove REAR SEAT
Remove all entrance cover strips. See REMOVING FRONT ENTRANCE COVER STRIP (INSIDE) and REMOVING REAR DOOR SILL COVER STRIP (INSIDE) .
Remove top/bottom B-pillar trim. See REMOVING TRIM (BOTTOM) and REMOVING TRIM (TOP) .
Remove COMPLETE CENTER CONSOLE .

Feed out rear floor trim panel (1) towards rear/top.

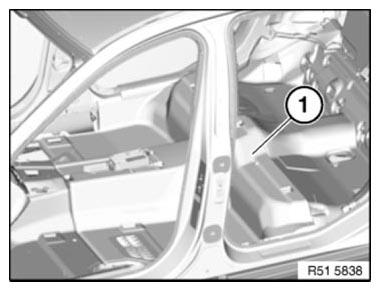

Fig 1: Identifying Rear Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Openings (1) serve as alignment points when fitting the rear floor trim panel (2).

Fig 2: Identifying Rear Floor Trim Panel And Opening

Courtesy of BMW OF NORTH AMERICA, INC.
